Production line and factory setup overview
A medium hygienic plastic-pipe line producing 20-63 mm single-layer PP-R hot- and cold-water pipe from certified virgin PP-R compound through sealed material handling, controlled colour dosing, single-screw extrusion, spiral-die forming, vacuum calibration, staged cooling, synchronized haul-off, permanent printing, dust-free length cutting and stacking, followed by dimensional, opacity, thermal-reversion and hydrostatic pressure testing.
Recommended lowest-entry line configuration Launch one single-layer 20-63 mm PP-R pipe family at 100-120 kg/h from certified hygienic virgin compound. Screen an SJ65/30 or 65/40-class extruder, colour-strip unit if specified, contracted dies and copper calibrators, dual-chamber vacuum/cooling tanks, two-belt haul-off, permanent printer, dust-free cutter and stacker. Fittings require a separate injection-moulding line. Do not market hot-water service until pipe-series, thermal-cycling and hydrostatic tests meet the named standard.
Production process and implementation sequence
- Hygienic compound certificate and lot release
- Sealed loading and controlled colour dosing
- Single-screw extrusion and die forming
- Vacuum calibration and staged cooling
- Synchronized haul-off and permanent printing
- Dust-free length cutting and stacking
- Dimension, opacity and heat-reversion inspection
- Hydrostatic and thermal service verification
Products, capacity and market fit
- Reliable hot/cold-water plumbing is needed in Afghan housing and institutions.
- Local pipe production reduces bulky imports and supports distributor stock.
- A 20-63 mm family addresses common internal plumbing diameters.
- Hygienic compound, socket-fusion compatibility and hot-water pressure life are essential.
- PP-R cold-water pipe - OD, pipe series/SDR, wall, material designation, opacity, marking and socket-fusion system - Buildings and institutional plumbing
- PP-R hot-water pipe - Named temperature/pressure class backed by hydrostatic and thermal-cycling qualification - Domestic hot-water systems after full validation
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Sealed loader and colour dosing | Feeds hygienic PP-R without contamination | Virgin compound only |

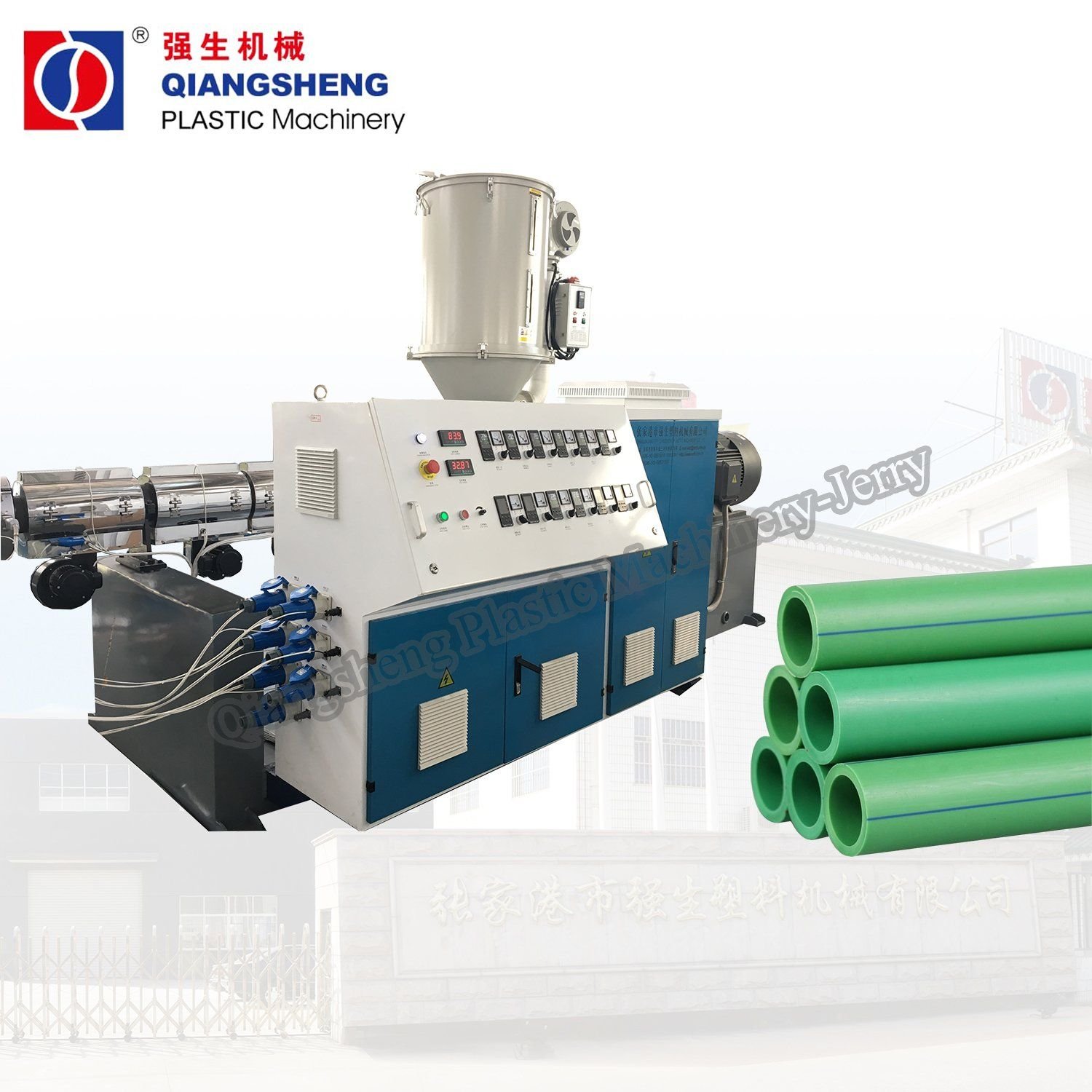

| SJ65-class single-screw extruder | Provides stable PP-R melt | 100-120 kg/h |
| Die, copper calibrators and stripe unit | Forms 20-63 mm pipe series | Contracted sizes |
| Dual vacuum/cooling tanks | Controls roundness and thermal history | Closed clean-water loop |
| Haul-off, printer, dust-free cutter and stacker | Finishes straight marked lengths | Synchronized line |
| PP-R pipe and joint laboratory | Validates hygienic, thermal and pressure service | Named standard |
Raw materials, utilities and factory requirements
- Certified virgin hygienic PP-R compound by lot
- Approved compatible colour masterbatch
- Qualified matching PP-R fittings from an approved supplier or separate injection line
- Caps, labels, packing and socket-fusion test pieces
- Stable three-phase electricity and verified transformer/motor-starting capacity
- Closed-loop clean cooling-water system with chiller or cooling tower
- Dry covered resin store and finished-pipe storage racks
- Compressed air, ventilation, fire protection and calibrated laboratory power
- Clean handling practices that prevent dust, oil and mixed-polymer contamination
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Extruder, die, calibrators and controls | US$40k-82k | Single-layer 20-63 mm |
| Vacuum/cooling, haul-off, printer, cutter and stacker | US$34k-76k | Balanced 100-120 kg/h |
| Laboratory, clean handling and water system | US$20k-50k | Hot/cold-water validation |
| Freight, installation, dies and spares | US$18k-46k | Launch pipe series |
| Indicative installed low-entry total | US$112k-254k | Building, resin, fittings and injection moulding excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
