Production line and factory setup overview
A strategic autoclaved aerated concrete plant producing defined lightweight wall blocks from prepared silica sand or fly ash, lime, cement, gypsum, water and controlled aluminium paste through milling, batching, casting, pre-curing, wire cutting, autoclave curing, packing and strength/density release. It is not a simple concrete-block machine.
Recommended lowest-entry line configuration Screen one 100,000-200,000 m3/year block size family only after proving silica/lime chemistry, steam generation, autoclave safety, water, laboratory control, covered curing/packing and contractor off-take.
Production process and implementation sequence
- Silica preparation and slurry milling
- Lime/cement/gypsum dosing and aluminium addition
- Casting and controlled pre-curing
- Wire cutting and green-cake handling
- Autoclave pressure curing
- Packing, density/strength testing and dispatch
Products, capacity and market fit
- Lightweight masonry can reduce wall weight and thermal load.
- AAC quality depends on raw-material chemistry, density and controlled autoclave curing.
- Steam, pressure-vessel compliance and buyer acceptance are non-negotiable.
- AAC lightweight blocks - Density, compressive strength, dimensions, moisture, thermal performance and edge quality - Afghan contractors, housing developers and block distributors

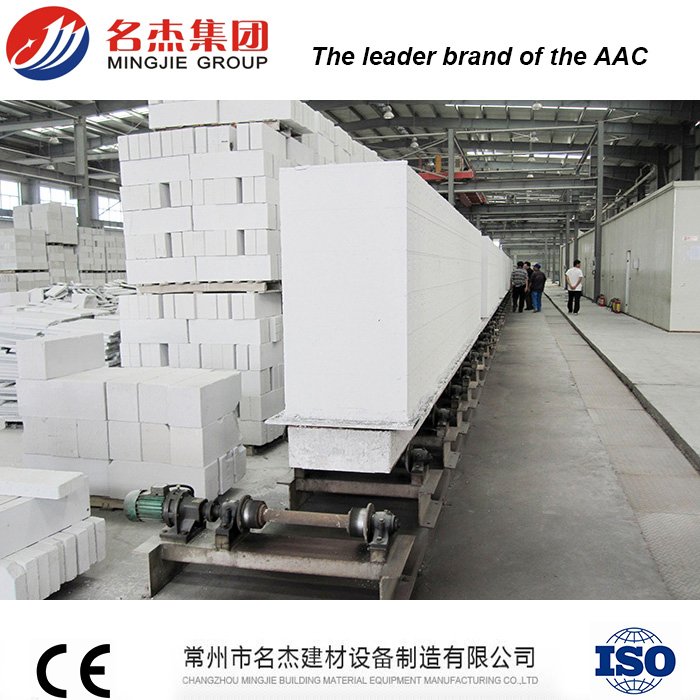

Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Milling, batching and casting system | Creates controlled AAC slurry | Defined block density |
| Pre-curing, cutting and handling | Forms green blocks | One block-size family |
| Autoclaves and steam system | Pressure-cures AAC | Certified pressure vessels |
| Packing and laboratory | Releases stable blocks | Density/strength acceptance |
Raw materials, utilities and factory requirements
- Tested silica sand or approved ash, lime, cement, gypsum and aluminium paste
- Pallets, wrapping and approved process additives
- Stable three-phase electricity with verified connected load
- Guarded machinery, lockout, ventilation and fire protection
- Covered segregated raw-material and finished-goods storage
- Maintenance tools, safe lifting and critical spare parts
- Certified steam boiler/autoclaves, water treatment and compressed air
- Dust collection, pressure-vessel controls and safe cutting/packing zone
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Milling, batching, casting and cutting | US$2m-5m | One AAC block family |
| Autoclaves, steam and handling | US$3m-8m | Pressure-curing core |
| Utilities, civil, lab and installation | US$2m-5m | Safety and quality scope |
| Indicative strategic project total | US$7m-18m | Land and working capital excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
