Production line and factory setup overview
A medium-industrial quarry line converting blasted or excavated sound rock into graded construction aggregates through controlled feed receiving, scalping and metal removal, primary jaw crushing, secondary impact or cone crushing selected for the rock, closed-circuit vibrating screening, recirculation of oversize, stockpile conveying, dust suppression or extraction, laboratory grading and dispatch by product size.
Recommended lowest-entry line configuration Proceed only after quarry testing confirms one rock source, feed top size, abrasion, strength, clay and required aggregate standards. Screen a 50 t/h stationary plant with hopper, grizzly feeder, jaw crusher, impact crusher for suitable limestone or cone crusher for abrasive hard rock, two- or three-deck screen, return conveyor, product conveyors, dust control, magnet and laboratory. Include foundations, guarding and a loader/excavator interface.
Production process and implementation sequence
- Quarry feed receiving and oversize control
- Grizzly scalping and metal removal

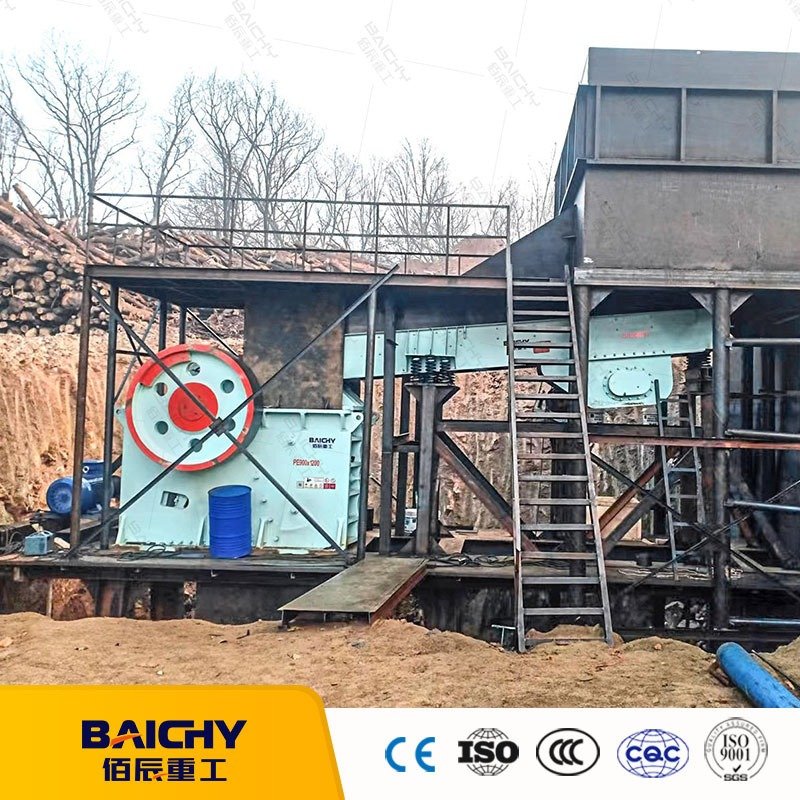

- Primary jaw crushing
- Secondary impact or cone crushing
- Closed-circuit screening and oversize return
- Product conveying and separated stockpiling
- Dust suppression, housekeeping and sampling
- Laboratory release, loading and dispatch
Products, capacity and market fit
- Roads, concrete and masonry markets require controlled aggregate gradation rather than unsorted crushed rock.
- A 50 t/h modular plant fits regional demand better than an oversized 200-500 t/h installation.
- Rock-specific crusher selection protects wear cost and particle shape.
- A quarry licence, reserves, blasting route and environmental controls are prerequisites, not optional extras.
- Coarse concrete aggregate - Buyer-standard nominal size, grading, shape, abrasion, soundness, cleanliness and absorption - Ready-mix, precast and infrastructure contractors
- Road base and fine aggregate - Specified grading, plasticity, fines and compaction performance - Road, civil and block-production projects
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Feed hopper and grizzly feeder | Meters quarry rock and removes natural fines | Loader-compatible |
| Primary jaw crusher | Reduces top-size rock for secondary crushing | 50 t/h balanced duty |
| Impact or cone secondary crusher | Develops target size and shape | Selected by rock test |
| Two- or three-deck vibrating screen | Separates contract product sizes | Replaceable media |
| Return and product conveyors | Closes circuit and forms clean stockpiles | Covered transfer points |
| Magnet, metal detector and control panel | Protects crushers and controls interlocks | Emergency-stop system |
| Dust suppression/extraction and drainage | Controls airborne dust and dirty runoff | Site-specific environment plan |
| Aggregate laboratory and weighbridge | Releases graded product and records sales | Applicable buyer standards |
Raw materials, utilities and factory requirements
- Licensed sound rock reserve with confirmed petrography and test results
- Crusher jaw plates, blow bars or cone liners and screen media
- Water for dust suppression and road control where appropriate
- Lubricants, conveyor idlers/belts, filters and critical electrical spares
- Reliable three-phase power or engineered generator/fuel basis
- Reinforced foundations and geotechnically stable plant platform
- Quarry haul road, loader/excavator and safe truck circulation
- Dust, noise, vibration and stormwater controls
- Guarding, pull cords, platforms, fire protection and lockout facilities
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Hopper, feeder, jaw and secondary crusher | US$180k-480k | 50 t/h rock-specific configuration |
| Screens, conveyors, controls and dust systems | US$110k-300k | Three-product closed circuit |
| Foundations, platforms, laboratory and handling | US$90k-260k | Safe installed plant |
| Freight, erection, commissioning and wear spares | US$110k-310k | Remote-site allowance |
| Indicative installed project total | US$490k-1.35m | Quarry rights, mobile fleet and working capital excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
