Production line and factory setup overview
Produces aluminium-composite façade panels by coil preparation, polymer-core extrusion or feeding, continuous lamination, cooling, trimming, surface protection, cutting and panel adhesion/flatness inspection.
Recommended lowest-entry line configuration This is a strategic continuous coil-and-polymer process. Confirm compliant core type, fire classification, coil supply, emissions controls, utilities, off-take and experienced technical partner before EPC selection.
Production process and implementation sequence
- Coil receipt and cleaning
- Core preparation/extrusion
- Continuous skin-core lamination
- Cooling and calibration
- Surface film and trim
- Cutting/packing
- Bond/flatness/fire-performance release
Products, capacity and market fit
- Approve a physical sample and applicable standard.
- Launch with a defined product range and documented tool settings.
- Keep material and quality records for each batch.
- Aluminium-composite façade panels - Aluminium skin thickness/coating, core type, panel thickness, bond strength, flatness, colour, fire classification and fabrication compatibility - Commercial façades, signage, retail, compounds and façade contractors
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|

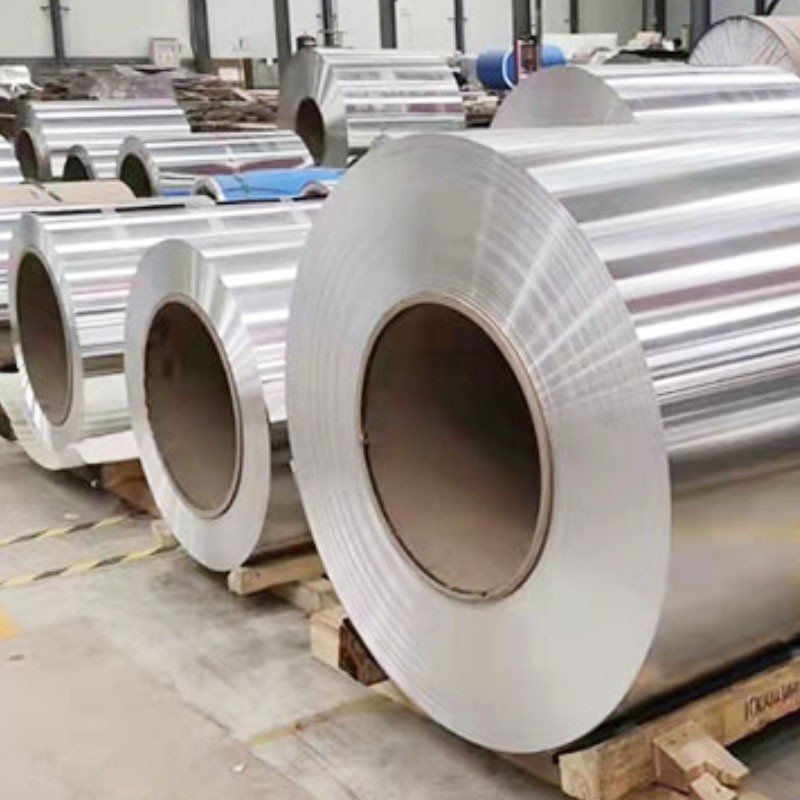

| Coil handling and surface preparation | Prepares aluminium skins | Coil/coating traceability |
| Core extrusion/feeding line | Forms specified polymer/mineral core | Approved core formulation |
| Continuous laminator | Bonds skins and core | Bond/temperature/pressure control |
| Finishing/packing system | Delivers protected panels | Flatness/edge tolerance |
| Panel laboratory | Releases compliant product | Bond/fire/appearance test |
Raw materials, utilities and factory requirements
- Coated aluminium coil, qualified polymer/mineral core materials, adhesion layers, protective film, packaging and process consumables
- Stable electricity, covered raw-material storage and protected finished-goods handling
- Guarded equipment, documented maintenance, essential spares and product-specific safety controls
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Coil, core and continuous lamination line | US$4m–12m | Strategic ACP process |
| Finishing, utilities and safety systems | US$1.5m–5m | Emissions/fire scope |
| EPC, lab and commissioning | US$1.5m–5m | Bankable feasibility required |
| Indicative strategic total | US$7m–22m | Land/building/working capital excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
