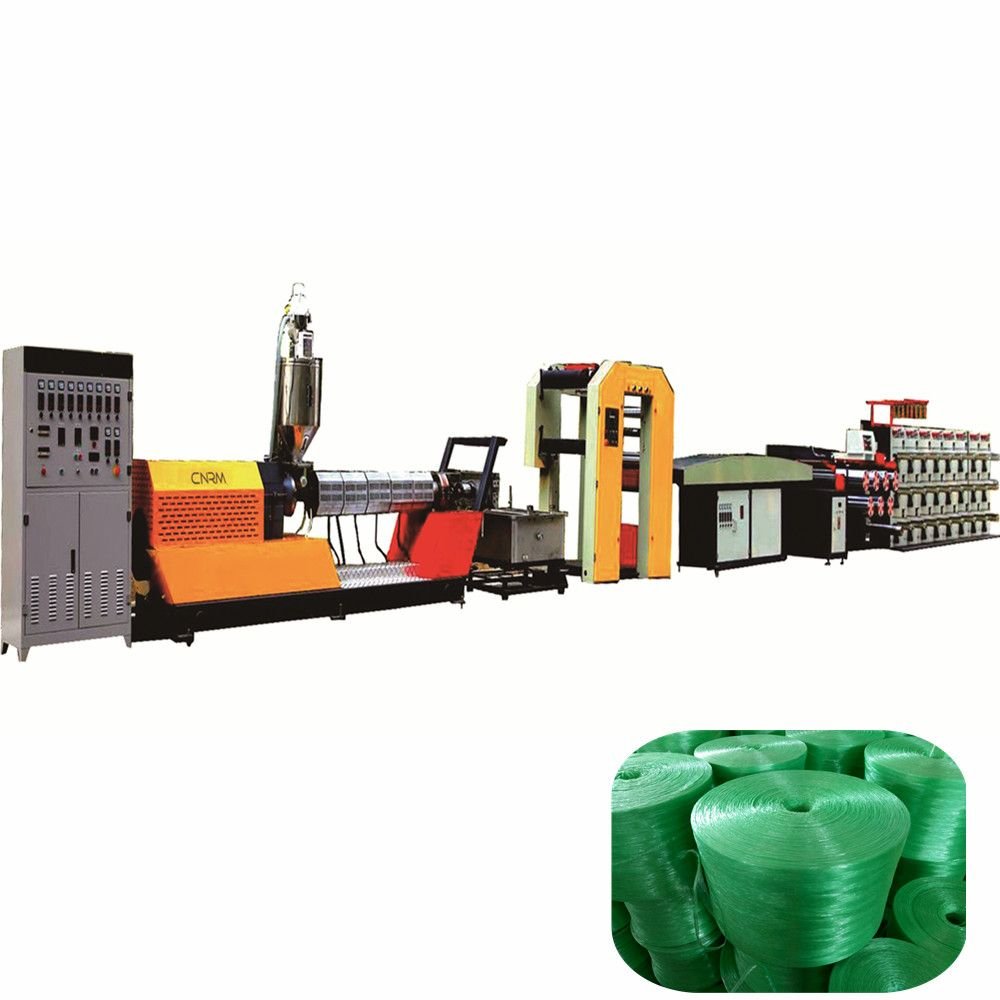

Production line and factory setup overview
A small/medium line producing one PP raffia baler or crop-support twine family through resin blending, flat-film extrusion, quenching, slitting and fibrillation, hot drawing and annealing, yarn winding, controlled primary and secondary twisting, ball/spool winding, length/mass checking, tensile and knot-strength testing and protected packing.
Recommended lowest-entry line configuration Launch one UV-stabilized 2-3 ply crop-support or general agricultural twine from certified PP at 300-600 kg/day. Contract the complete route from raffia extruder through drawing/fibrillation, bobbins, twister and ball/spool winder. Recycled PP may be trialled only for non-safety general-purpose twine after contamination, strength, elongation and weathering validation.
Production process and implementation sequence
- Resin and additive release
- Raffia film extrusion and quench
- Slitting, fibrillation and hot drawing
- Annealing and yarn winding
- Primary/secondary twisting
- Ball or spool winding
- Length, mass and visual inspection
- Tensile, knot and UV release
Products, capacity and market fit
- Farm tying, baling and crop support create distributed repeat demand.
- A small complete line can serve local pack sizes.
- One twine construction controls twist and winding recipes.
- UV life, knot strength and length-per-package must be verified.
- PP crop-support twine - Linear density, ply, twist, breaking/knot strength, elongation, UV class, colour and package length - Orchards, vineyards and greenhouse growers
- General agricultural tying rope - Diameter, strand count, lay, breaking load and coil mass - Farms and merchants after separate tooling
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Raffia extruder and quench | Forms oriented flat-film yarn feed | One PP recipe |
| Slitter/fibrillator and drawing oven | Develops yarn structure and strength | Controlled draw ratio |
| Bobbin winders | Build uniform feed packages | Tension controlled |
| Ring twister/strand machine | Creates 2-3 ply twine | One construction |
| Ball/spool winder | Makes retail/agricultural packages | Length counter |
| Twine laboratory | Releases titre, twist, strength and UV basis | Named methods |
Raw materials, utilities and factory requirements
- Certified PP raffia grade
- UV stabilizer and approved colour masterbatch
- Controlled clean recycled PP only for validated non-safety grade
- Cores, bags, labels and cartons
- Stable three-phase electricity with verified connected load
- Closed-loop cooling water with chiller or cooling tower
- Dry covered resin/additive storage and segregated finished goods
- Ventilation, fire protection, safe lifting and guarded machinery
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Raffia extrusion, drawing and yarn winding | US$24k-58k | 300-600 kg/day |
| Twisting and package winding | US$12k-32k | One 2-3 ply family |
| Laboratory, utilities and safety | US$6k-18k | Strength and UV basis |
| Freight, installation and spares | US$8k-22k | Complete route |
| Indicative installed low-entry total | US$50k-130k | Building and resin excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
