Production line and factory setup overview
A medium precision extrusion line converting qualified clean recycled PET bottle flake into industrial packing strap through sorting and metal removal, crystallization and deep dehumidifying, metered feeding, vented extrusion with continuous melt filtration and melt pump, one- or two-strand die forming, water quench, staged infrared reheating and orientation drawing, embossing, heat setting, controlled cooling, accumulator winding and tensile, elongation, camber and weld-joint testing.
Recommended lowest-entry line configuration Launch one 12-16 mm machine-grade strap on a single-strand 50-80 kg/h line using washed hot-washed PET flake with controlled PVC, moisture and intrinsic-viscosity limits. Include crystallizer/dehumidifier, vented extruder, continuous filter, melt pump, staged drawing/heat setting, embossing, automatic winder and strap laboratory. A bottle-washing plant is separate unless the feed is already qualified.
Production process and implementation sequence
- Flake inspection and metal removal
- Crystallization and dehumidifying
- Vented extrusion and melt filtration

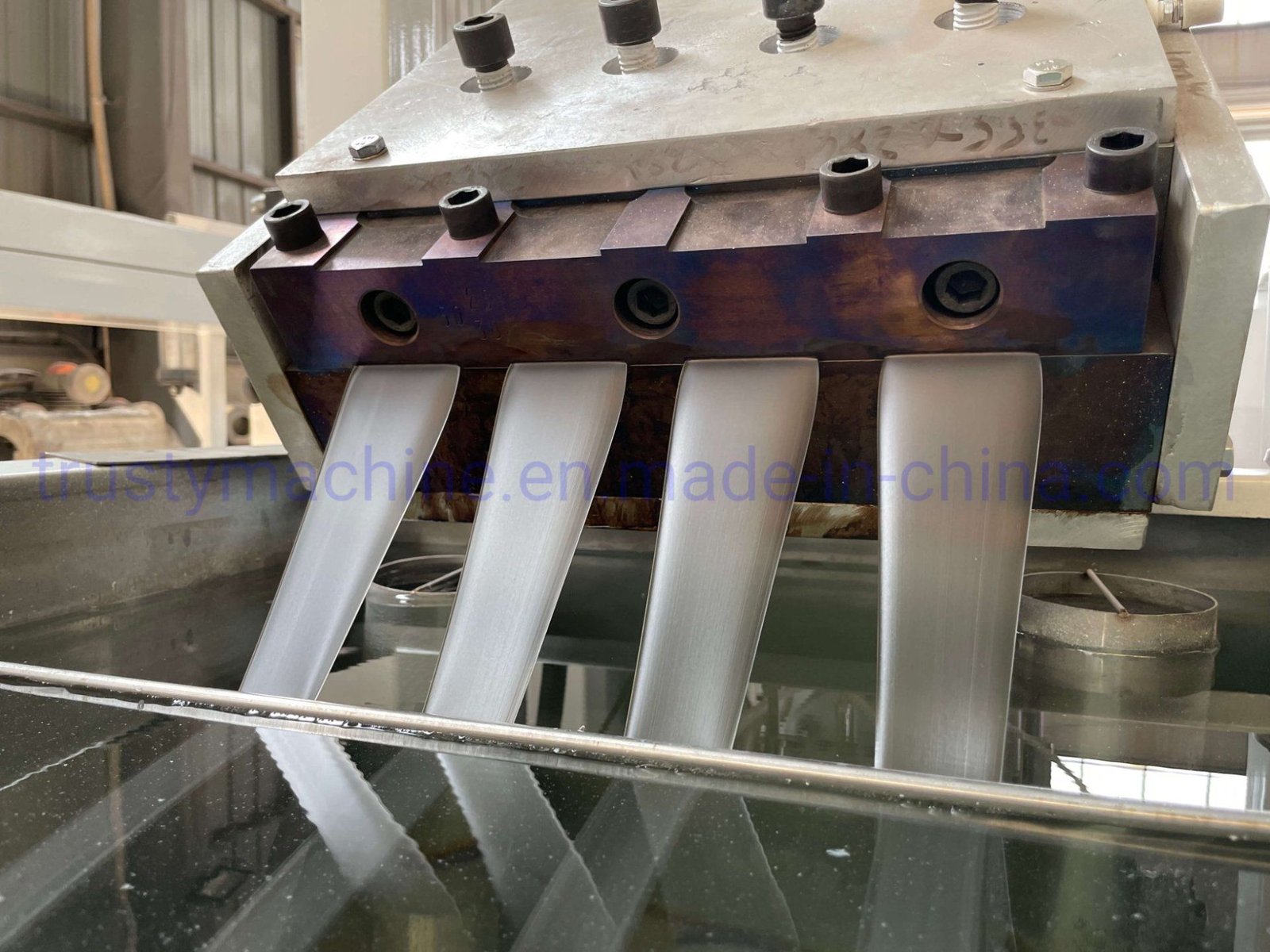

- Melt-pump die forming and quench
- Staged reheating and orientation drawing
- Embossing and heat setting
- Cooling, accumulation and winding
- Strap and weld-joint release
Products, capacity and market fit
- PET bottle flake can become higher-value industrial packaging.
- Local strap serves bricks, stone, cotton, timber and logistics users.
- A single strand controls drying and draw quality at entry scale.
- Breaking load, elongation, camber and weld efficiency determine machine performance.
- Machine-grade recycled PET strap - Width, thickness, mass/metre, breaking load, elongation, camber, surface, coil and weld efficiency - Brick, stone, cotton, timber and logistics packers
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Crystallizer and dehumidifying dryer | Prevents PET sticking and hydrolysis | Low-moisture feed |
| Vented PET extruder and continuous filter | Plasticizes flake and removes contamination | 50-80 kg/h |
| Melt pump and single-strand die | Stabilizes strap dimensions | 12-16 mm |
| Drawing, embossing and heat-setting train | Develops strength and dimensional stability | Recipe controlled |
| Accumulator and automatic winder | Builds uniform machine coils | Tension controlled |
| Strap laboratory and welding tool | Verifies strap and joint performance | Buyer protocol |
Raw materials, utilities and factory requirements
- Hot-washed PET bottle flake with declared PVC, moisture, colour and IV
- Approved colour/masterbatch and processing additive
- Cores, wraps, labels and filter screens
- Stable three-phase electricity with verified connected load
- Ventilation, fire protection, guarded drives and lockout procedures
- Dry segregated raw-material and finished-goods storage
- Maintenance workshop, lifting tools and critical spares
- Closed-loop cooling water and dry compressed air
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Drying, extrusion, filter and melt pump | US$58k-120k | 50-80 kg/h single strand |
| Drawing, heat set, embossing and winding | US$38k-85k | Machine-grade strap |
| Laboratory, cooling and air | US$15k-38k | Joint testing included |
| Freight, installation and spares | US$20k-48k | Flake trial included |
| Indicative installed low-entry total | US$131k-291k | Bottle wash line, building and flake excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
