Production line and factory setup overview
A medium plastic-extrusion line producing 16-63 mm black HDPE pressure-irrigation pipe and coils from certified virgin PE80 or PE100 compound through lot release, vacuum loading, controlled dosing and colour-stripe coextrusion, single-screw melting, spiral-die forming, vacuum calibration, staged spray cooling, synchronized haul-off, inline marking, coil winding or cutting, dimensional inspection and hydrostatic pressure testing.
Recommended lowest-entry line configuration Launch 16-63 mm coiled irrigation pipe at 70-120 kg/h using certified virgin PE80/PE100 pressure-pipe compound. Screen an SJ65/33-class extruder with stripe coextruder, contracted dies/sleeves, vacuum tank, cooling tank, dual-belt haul-off, printer and controlled coiler. Include density, melt-flow, carbon-black dispersion/content, dimensions and long-duration hydrostatic test capability. Recycled HDPE is not accepted for pressure pipe unless the exact standard and third-party validation permit it.
Production process and implementation sequence
- Compound certificate and lot release
- Vacuum loading and controlled dosing
- Single-screw melting and stripe coextrusion
- Spiral-die forming and vacuum calibration
- Staged spray cooling and synchronized haul-off
- Inline marking and coil winding
- Dimension, ovality and surface inspection
- Compound and hydrostatic pressure release
Products, capacity and market fit
- Efficient irrigation is central to Afghan agriculture and water conservation.
- Small-diameter coils serve orchards, farms and distribution networks.
- One pressure class and diameter family simplifies dies and laboratory control.
- Pipe lifetime depends on certified compound, wall control, fusion quality and pressure testing.
- HDPE pressure-irrigation coil - OD, SDR/PN, PE80/PE100 designation, wall tolerance, colour stripe, coil length and joining method - Farms, orchards and irrigation contractors
- HDPE lateral or distribution pipe - Buyer-defined pressure class and diameter with matching approved fittings - Agricultural networks after hydraulic design

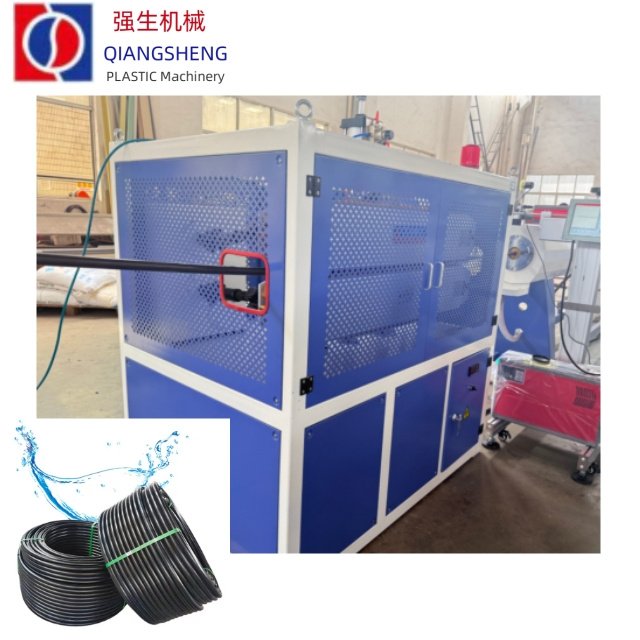

Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Vacuum loader and controlled dosing | Feeds traceable compound and stripe masterbatch | No uncontrolled regrind |
| SJ65/33-class single-screw extruder | Melts pressure-pipe compound uniformly | 70-120 kg/h |
| Stripe coextruder, die and calibrators | Forms 16-63 mm pipe family | Contracted SDRs |
| Vacuum and spray-cooling tanks | Controls OD, roundness and cooling | Closed water loop |
| Haul-off, printer and coiler | Controls line speed, marking and coils | Synchronized drive |
| HDPE pipe laboratory | Releases compound, dimensions and pressure life | Named standard |
Raw materials, utilities and factory requirements
- Certified virgin PE80 or PE100 pressure-pipe compound by lot
- Approved colour-stripe masterbatch compatible with base compound
- Only documented clean start-up recycle within the approved quality plan
- Caps, coil straps, labels and fusion/test consumables
- Stable three-phase electricity and verified transformer/motor-starting capacity
- Closed-loop clean cooling-water system with chiller or cooling tower
- Dry covered resin store and finished-pipe storage racks
- Compressed air, ventilation, fire protection and calibrated laboratory power
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Extruder, coextruder, die and controls | US$42k-88k | 16-63 mm family |
| Vacuum/cooling, haul-off, printer and coiler | US$32k-72k | Balanced 70-120 kg/h |
| Laboratory and water/utilities system | US$18k-45k | Pressure-pipe release |
| Freight, installation, dies and spares | US$18k-45k | All launch diameters |
| Indicative installed low-entry total | US$110k-250k | Building, resin stock and fittings excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
