Production line and factory setup overview
A small/medium narrow-web printing and converting line producing roll-fed self-adhesive labels from purchased pressure-sensitive label stock through substrate release and conditioning, unwinding, tension and web guidance, flexographic printing, controlled ink or UV drying, optional varnish/lamination, rotary die cutting, matrix waste stripping, slitting, rewinding, camera or strobe inspection, roll counting, packing and traceability. It does not coat pressure-sensitive adhesive.

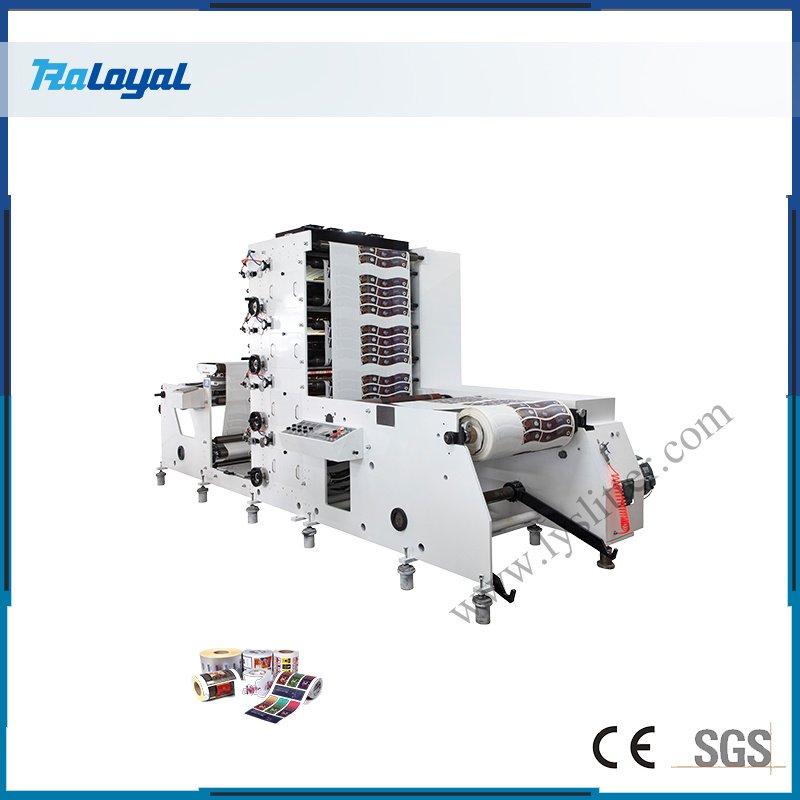

Recommended lowest-entry line configuration Start with a supported 320-450 mm four-colour narrow-web flexo press with web guide, corona where film stock is used, hot-air/IR and buyer-approved UV only where properly shielded, one varnish or cold-laminate station, inline rotary die cut, matrix rewind and slitting/rewinding. Launch two repeat label sizes for one sector; buy certified label stock and outsource plates/dies initially where practical.
Production process and implementation sequence
- Label-stock receiving and material release
- Unwinding, tension and web guiding
- Optional corona and flexographic printing
- Hot-air/IR or controlled UV curing
- Varnish or cold lamination
- Rotary die cutting and matrix stripping
- Slitting, inspection and roll rewinding
- Count, code, pack and customer application release
Products, capacity and market fit
- Food, beverage, pharmaceutical, cosmetics and logistics users need short-run local labels.
- Purchased pressure-sensitive stock avoids coating chemistry and release-liner manufacture.
- One web width and a small set of dies limit inventory and tooling cost.
- Colour registration, die-to-print alignment, adhesive suitability and roll winding determine usability.
- Paper product label roll - Face stock, adhesive, liner, colours, dimensions, unwind direction, core, roll count and application - Food, beverage, household and logistics users
- Film label roll - Separate PP/PE/PET face, corona, ink/varnish, adhesive and container compatibility - Cold, wet or high-durability applications after material trials
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Narrow-web unwind and web guide | Feeds label stock with stable tension | 320-450 mm width |
| Four-colour flexographic press | Prints repeat label artwork | One supported ink system |
| Drying/UV and optional corona | Cures ink and treats film surfaces | Shielded and ventilated |
| Varnish or cold-laminate station | Protects print surface | One finish route |
| Rotary die cutter and magnetic cylinder | Kiss-cuts label shape | Two launch dies |
| Matrix and trim rewind | Removes surrounding waste safely | Break-free acceptance |
| Slitter/rewinder and inspection | Forms customer rolls and verifies defects | Core/count/unwind direction |
Raw materials, utilities and factory requirements
- Certified pressure-sensitive paper or film label stock
- Matched flexographic ink, varnish or cold laminate
- Printing plates, magnetic/flexible dies and cores
- Cartons, wrap, labels, cleaning materials and critical spares
- Stable three-phase power and clean compressed air
- Temperature/humidity-controlled stock and print room
- Ink storage, ventilation and fire-safe solvent controls if applicable
- UV shielding/ozone extraction where UV is installed
- Clean inspection, finished-roll and plate/die storage
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Four-colour narrow-web flexo press | US$28k-70k | 320-450 mm entry |
| Inline die cut, matrix and slitting | US$12k-36k | Two launch dies |
| Inspection, plate tools and quality equipment | US$7k-20k | Barcode and roll release |
| Freight, ventilation, installation and spares | US$10k-28k | Ink/UV safety included |
| Indicative installed low-entry total | US$57k-154k | Adhesive coating, building and stock excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
