Production line and factory setup overview
A medium industrial small-ruminant abattoir covering animal receiving and holding, ante-mortem inspection, approved halal slaughter and bleeding, hide removal, head/feet and viscera handling, carcass splitting where required, post-mortem inspection, washing, weighing, rapid carcass chilling, edible offal chilling and controlled dispatch.
Recommended lowest-entry line configuration Obtain a complete installed-cost proposal for a 10-20 head/h rail-based line, including lairage, halal slaughter box/station, bleeding rail, hide puller or hygienic manual skinning platforms, evisceration and inspection stations, carcass washer, scales, two-stage chill rooms, offal room, wastewater and condemned-material systems.
Production process and implementation sequence
- Animal receiving and ante-mortem inspection
- Approved halal restraint, slaughter and bleeding
- Head, feet and hide removal
- Evisceration with edible/offal separation
- Post-mortem inspection and trimming
- Carcass wash, weigh and identification
- Rapid pull-down and holding chill
- Cold dispatch, sanitation and waste control
Products, capacity and market fit
- Afghan livestock or poultry can support formal hygienic meat markets.
- Rapid chilling protects product quality and extends usable distribution time.
- A phased semi-automatic line uses local labor while controlling critical hygiene steps.
- By-products and wastewater need confirmed legal, safe and economical routes.
- Chilled sheep carcass - Inspected, identified, weighed and chilled under the approved time-temperature program - Wholesalers, butchers and institutions
- Chilled goat carcass and edible offal - Separate species/lot identity; offal cleaned, packed and chilled independently - Wholesale and specialist retail
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Lairage, race and restraint/slaughter station | Controls welfare, identity and approved halal slaughter | 10-20 head/h design |

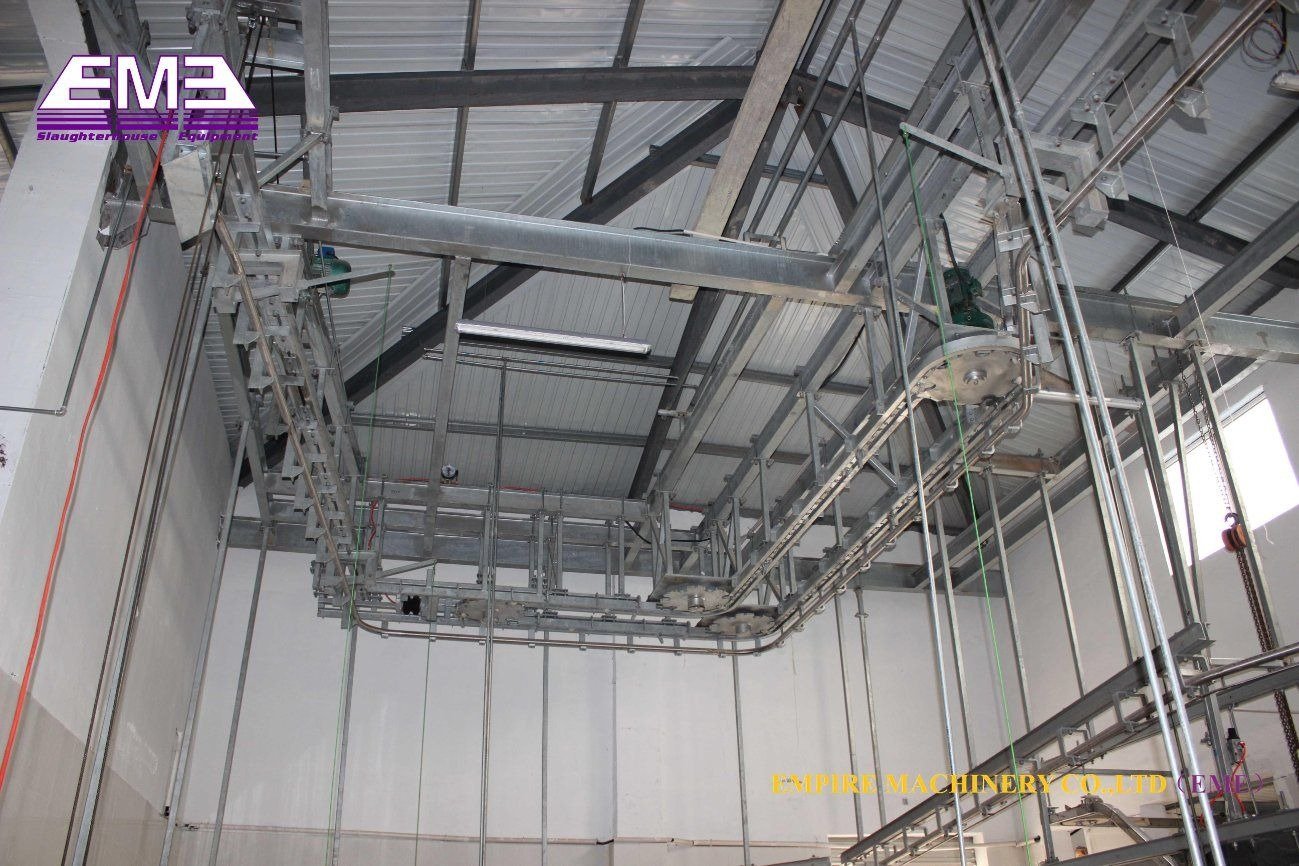

| Bleeding and dressing rail | Moves carcasses without floor contact | Species-appropriate spacing |
| Hide removal platforms or puller | Removes hide while limiting contamination | Manual/mechanical after study |
| Evisceration and inspection stations | Separates edible offal and supports inspection | Sterilizers and handwash included |
| Carcass washer, scale and rail ID | Cleans, weighs and preserves traceability | Post-inspection only |
| Pull-down and holding chill rooms | Achieves and maintains target carcass temperature | Maximum daily kill basis |
| Offal room and cold store | Separately cleans and chills approved offal | Red/green offal segregation |
| Wastewater and condemned-material system | Controls high-load effluent and unsafe material | Authority-approved route |
Raw materials, utilities and factory requirements
- Healthy animals or chilled carcasses from approved traceable suppliers
- Potable process water, ice or refrigeration as specified
- Food-contact bags, labels, cartons and clean reusable crates
- Approved cleaners, sanitizers and laboratory consumables
- Stable electricity matched to motors, controls, refrigeration and lighting
- Potable process and sanitation water with adequate pressure
- Washable food-grade rooms, drainage, pest control and hygiene barriers
- Segregated live/dirty, edible-process, packaging and finished-product zones
- Cold rooms, wastewater and by-product systems sized to the confirmed process
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Feasibility, design and approvals | US$20k-70k | Site, veterinary, halal and environmental basis |
| Slaughter, rail and dressing equipment | US$90k-300k | 10-20 head/h installed screening |
| Cold rooms, offal and dispatch systems | US$80k-260k | Two-stage chilling |
| Water, wastewater and by-product systems | US$60k-240k | Mandatory site-specific scope |
| Civil works, installation and contingency | US$100k-380k | Food-grade building and specialist erection |
| Indicative installed project basis | US$350k-1.25m | Land, livestock and vehicles excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
