Production line and factory setup overview
A controlled abattoir by-product line for fresh segregated cattle, sheep or goat bones: closed receiving, pre-breaking, pressure or high-temperature batch rendering, fat/liquid separation, drying, cooling, hammer milling, screening, metal control and bagging. The chosen product—feed-grade meat-and-bone meal or sterilized fertiliser bone meal—determines feedstock, treatment and legal release tests.
Recommended lowest-entry line configuration For the lowest credible entry, integrate with an approved abattoir and use a 500-1,000 kg/batch sealed crusher-cooker, press, indirect dryer, cooler, mill and bagger. Launch sterilized fertiliser-grade bone meal unless a feed authority and buyer approve the species, pathogen process and feed standard.
Production process and implementation sequence
- Closed by-product receiving
- Size reduction or liquid screening
- Controlled thermal cooking/coagulation
- Mechanical dewatering or pressing
- Validated drying
- Cooling and protected transfer
- Grinding, screening and metal check
- Bagging, coding and dry storage
Products, capacity and market fit
- Formal abattoirs need safe routes for high-load animal by-products.
- Thermal processing can convert a disposal cost into a controlled product.
- A batch plant matches variable Afghan slaughter volumes.
- The final market must be legally confirmed before equipment purchase.
- Sterilized bone-meal fertiliser - Controlled moisture, particle size, pathogen treatment and declared nutrient analysis - Fertiliser blenders and farms under local approval
- Meat-and-bone meal expansion - Feed-authority approved species, protein, ash, fat and microbiology - Licensed feed mills only
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Closed receiving bins and feed system | Contains and meters fresh by-product | 500-1,000 kg/batch |
| Crusher or screened transfer pump | Creates a controlled uniform feed | Material-specific design |

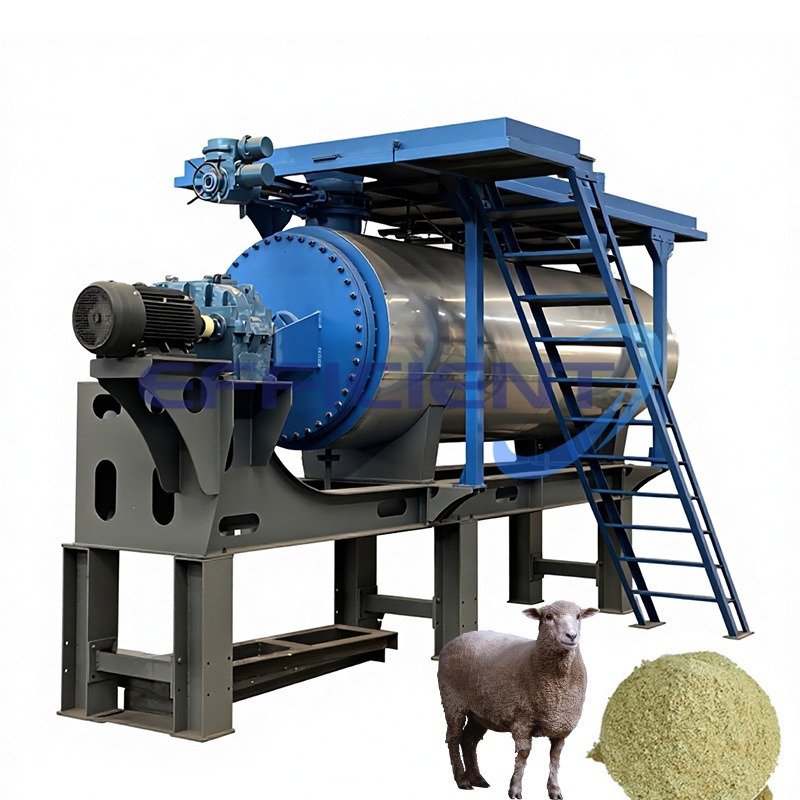

| Batch cooker or coagulation vessel | Applies the validated thermal treatment | Recorded temperature and time |
| Press or dewatering unit | Reduces liquid load before drying | Yield trial required |
| Indirect or rotary dryer | Reaches safe stable moisture | Exhaust and fire controls included |
| Condenser and odour treatment | Controls vapour and nuisance emissions | Site-specific mandatory scope |
| Cooler, mill and screen | Produces stable controlled particle size | Low-dust enclosed transfer |
| Scale, bagger and dust collector | Packs and identifies released meal | 20-25 kg entry bags |
Raw materials, utilities and factory requirements
- Fresh segregated abattoir by-product collected in closed washable bins
- Food/feed/fertiliser packaging selected for the legally approved end use
- Fuel or steam, filter media and approved cleaning chemicals
- Laboratory samples, calibration materials and traceability labels
- Stable three-phase electricity matched to motors and controls
- Potable process and sanitation water with adequate pressure
- Process heat or steam sized to the confirmed thermal load
- Washable rooms, trapped drainage, pest control and hygiene barriers
- Odour, wastewater and by-product controls approved for the site
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Receiving, crusher and conveyors | US$20k-55k | 500-1,000 kg/batch |
| Sealed cooker and press | US$55k-145k | Validated thermal cycle |
| Dryer, cooler, mill and bagger | US$45k-120k | One approved grade |
| Steam, odour and effluent controls | US$35k-100k | Mandatory site scope |
| Freight, installation and spares | US$35k-90k | Pressure/thermal commissioning |
| Indicative low-entry total | US$190k-510k | Building and collection excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
