Production line and factory setup overview
A small/medium food-contact metalware line converting certified aluminium circles into one deep-drawn pot or pan family through incoming alloy and surface inspection, circle lubrication, guarded hydraulic deep drawing, optional intermediate annealing for the approved alloy/draw ratio, trimming and beading, base finishing, controlled washing, internal and external polishing or approved coating, handle-hole punching, riveting, leak/rocking checks, food-contact verification and packing.
Recommended lowest-entry line configuration Launch one uncoated 20-28 cm aluminium cooking-pot family from purchased food-grade aluminium circles. Screen a 200-315 t four-column hydraulic press with matched draw dies, trim/bead machine, washer, inner/outer polishing stations, punching/riveting jigs and leak/flatness gauges. Add annealing only after draw trials. Do not feed unsorted scrap directly; remelting, alloy control and circle casting/rolling are a separate metallurgical plant.
Production process and implementation sequence
- Circle certificate, gauge and surface release
- Lubrication and first deep draw
- Optional redraw or approved annealing
- Trim, bead and base finishing
- Wash and controlled polishing
- Handle punching, riveting and lid fit
- Leak, flatness and handle proof checks
- Food-contact release and packing
Products, capacity and market fit
- Cooking pots are a repeat household and hospitality product.
- Purchased certified circles let a smaller factory avoid unsafe uncontrolled remelting.
- One body family shares forming, trimming, polishing and handle fixtures.
- Alloy chemistry, surface finish, handle retention and food-contact tests protect users.
- Uncoated aluminium cooking pot - Diameter, volume, alloy, body/base thickness, rim, lid, handles, finish and food-contact limit - Households, restaurants and institutional kitchens
- Aluminium saucepan or shallow pan - Separate dedicated draw die, rim, base flatness, handle system and approved surface finish - Retail and hospitality after tooling validation
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Circle inspection and lubrication station | Releases certified blanks and controls drawing | One alloy/temper |

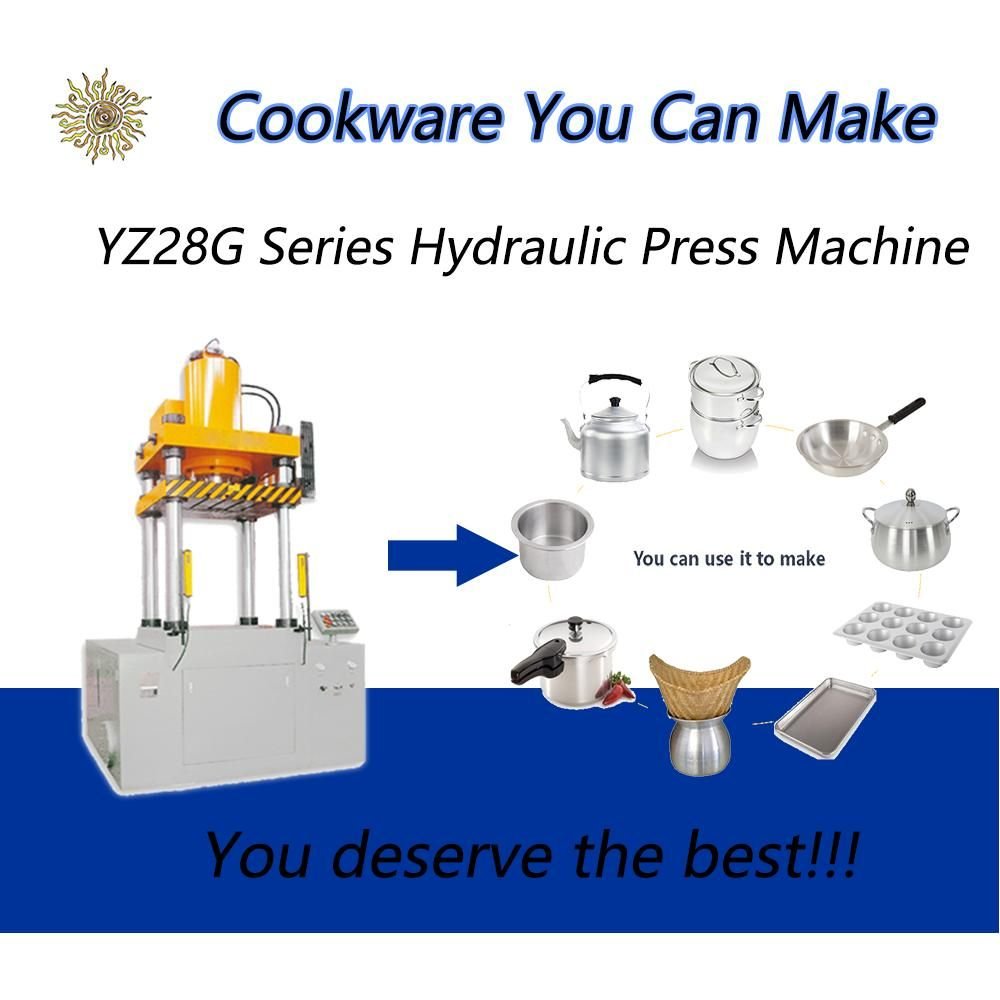

| 200-315 t hydraulic press and draw dies | Deep-draws one body family | Contracted diameters |
| Trim and bead machine | Finishes safe repeatable rim | Matched mandrels |
| Wash and polishing stations | Produces clean controlled finish | Dust extraction |
| Punch and riveting fixtures | Attaches handles and lid hardware | Dedicated jigs |
| Cookware inspection laboratory | Checks geometry, handle and food-contact performance | Buyer test plan |
Raw materials, utilities and factory requirements
- Certified food-contact aluminium circles by alloy, temper, diameter and thickness
- Approved handles, rivets, lids, knobs and packaging
- Food-safe lubricant and cleaning chemistry
- Polishing compounds and consumables with controlled residue
- Stable three-phase electricity with protected distribution
- Covered sheet store and safe lifting/handling routes
- Guarded presses, interlocked tooling and emergency stops
- Welding/fume extraction, fire protection and disciplined housekeeping
- Polishing dust collection, controlled wash-water route and optional annealing ventilation
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Hydraulic press and one die family | US$28k-58k | One pot family |
| Trim, bead, wash and polishing | US$22k-62k | Manual/semi-automatic entry |
| Handle assembly, laboratory and safety | US$8k-24k | Food-contact release |
| Freight, commissioning and spares | US$12k-30k | Circle trials included |
| Indicative installed low-entry total | US$70k-174k | Building, circles, coating and remelting excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
