Production line and factory setup overview
Produces extruded-polystyrene (XPS) thermal-insulation boards by resin storage and dosing, controlled extrusion with approved blowing-agent system, foam cooling/calibration, surface treatment, cutting, packaging and thermal/density/compression testing.
Recommended lowest-entry line configuration This is a strategic polymer process requiring a validated blowing-agent, fire-safety, emissions, resin supply, energy and certification plan. Do not select equipment until board density, thickness, thermal resistance, compressive strength and local code requirements are confirmed.
Production process and implementation sequence
- Polystyrene resin and additive qualification
- Feeding/compounding and blowing-agent dosing
- Extrusion and foam formation
- Cooling/calibration
- Surface profiling
- Cutting and edge finish
- Packaging
- Density, compression, thermal and dimensional release
Products, capacity and market fit
- Confirm the intended application, applicable standard and buyer acceptance test.
- Use a defined product family and documented formula/tooling at launch.
- Keep material, curing/firing and release records for every lot.
- XPS thermal-insulation boards - Density, thickness, thermal conductivity, compressive strength, water absorption, dimensional stability, surface profile and fire classification - Roofs, floors, cold rooms, warehouses, infrastructure and insulation distributors
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Resin silos and dosing system | Controls polymer/additive feed | Qualified resin/blowing-agent recipe |

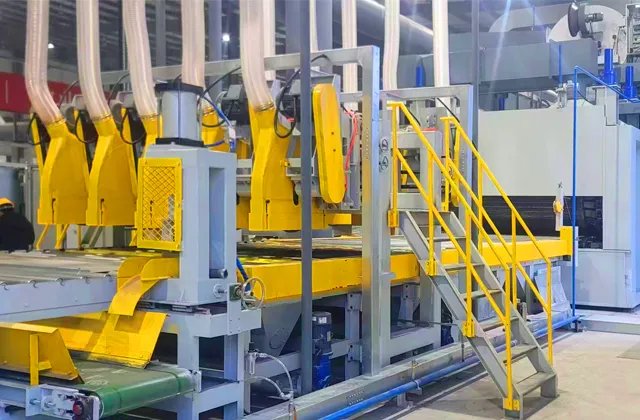

| XPS extrusion line | Forms closed-cell foam board | Density/thickness target |
| Cooling/calibration section | Stabilises foam dimensions | Board flatness and thickness |
| Profiling/cutting/packing line | Creates saleable insulation formats | Edge and length tolerance |
| Insulation laboratory | Releases certified boards | Thermal/compression/fire test plan |
Raw materials, utilities and factory requirements
- Polystyrene resin, approved blowing agent, nucleating/stabilising additives, colour masterbatch where specified, packaging film, cutting spares and fire-safety consumables
- Industrial electricity, covered storage and protected finished-board handling
- Guarded machinery, maintenance plan, essential spares and material-specific dust/heat/chemical controls
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Resin handling and XPS extrusion | US$2.5m–7.5m | Specialist closed-cell foam process |
| Cooling, finishing, safety and packing | US$1m–3m | Board-format and emissions scope |
| Utilities, lab, fire systems and EPC | US$1.2m–4m | Bankable-feasibility project |
| Indicative strategic total | US$4.7m–14.5m | Land/building/resin working capital excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
