Production line and factory setup overview
A small/medium metal-forming project producing light shop shelving or engineered warehouse-rack components from steel coil and sheet through coil receiving, decoiling and leveling, servo punching, upright or shelf-panel roll forming, cut-to-length, beam and brace fabrication, welding where required, pretreatment and powder coating, component gauging, controlled assembly, load verification, packing and traceability.
Recommended lowest-entry line configuration Choose one market first. The low-entry route is light boltless shop shelving made with flexible punching, bending and fixtures. If pallet racking is confirmed, procure one 1.5-2.0 mm upright roll-forming line with servo punch and hydraulic cut, plus separate beam/brace tooling, powder coating and a qualified rack designer. Never publish pallet load ratings from supplier advertising alone.
Production process and implementation sequence
- Approved system design and coil release
- Decoiling, leveling and servo punching
- Upright, shelf or beam profile forming
- Length cutting and component gauging
- Brace and connector fabrication
- Pretreatment and powder coating
- Controlled bay assembly and load verification
- Kit counting, packing and traceable dispatch
Products, capacity and market fit
- Warehouses, wholesalers, pharmacies and shops need locally configured storage systems.
- Local production reduces freight on bulky finished racks and enables replacement parts.
- A shop-shelving entry route can precede engineered pallet racking.
- Load capacity depends on steel grade, geometry, connectors, bracing, anchors and installation.
- Light shop shelving bay - Bay dimensions, shelf count, distributed load, finish, fasteners and anchoring - Retail, offices and small stores
- Selective pallet-rack bay - Engineered upright, beam, connector, brace, anchor, bay and load plaque - Warehouses only after structural verification
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Coil decoiler and leveler | Feeds specified rack steel | Coil grade/thickness |
| Servo punching system | Creates repeatable connector hole pitch | Tooling-specific |

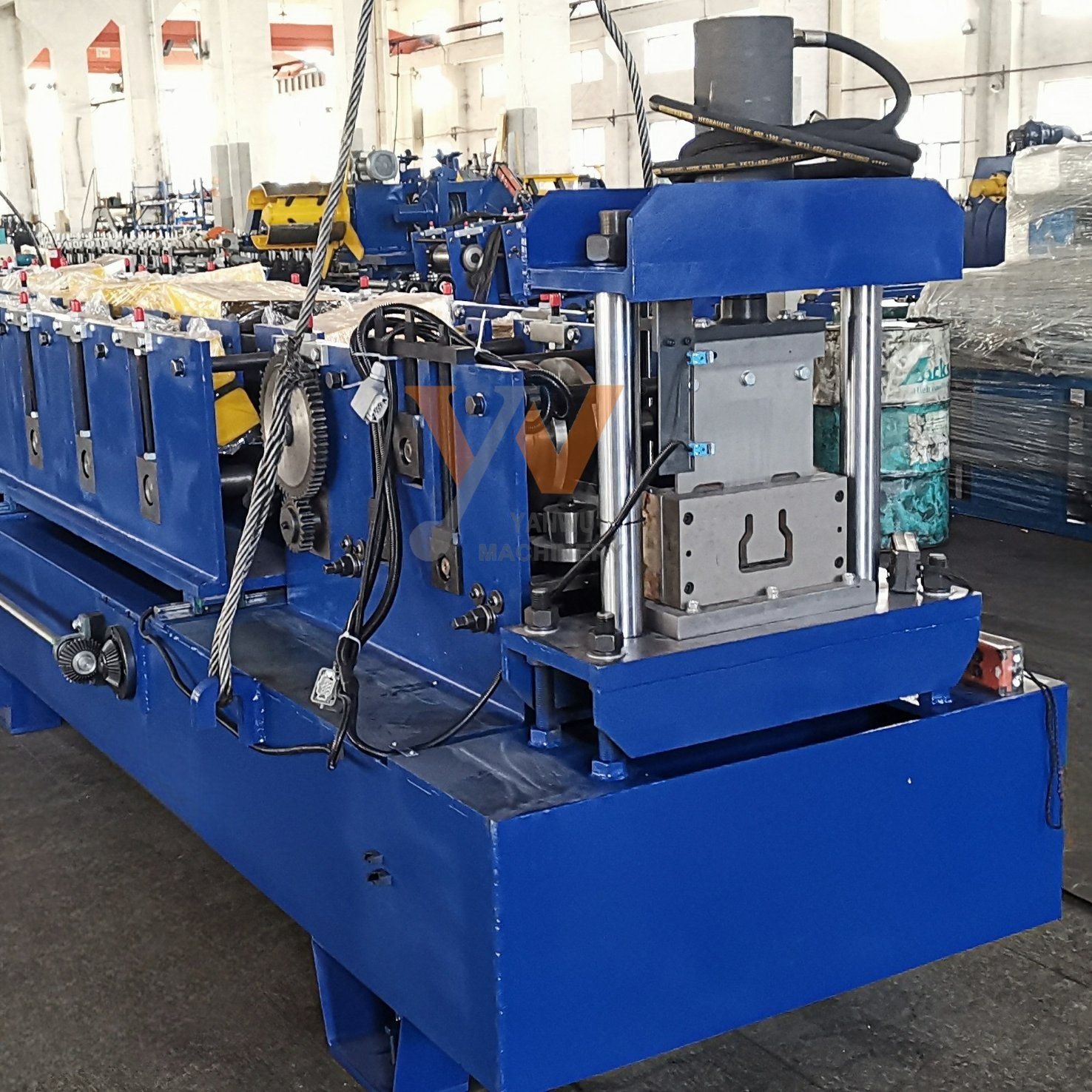

| Upright or shelf roll former | Forms the launch structural profile | One system family |
| Hydraulic flying cutter and run-out | Cuts component lengths | Encoder controlled |
| Beam/brace fabrication fixtures | Produces matching horizontal members | Separate tools |
| Pretreatment and powder-coat line | Protects components | Cure recorded |
| Gauges and assembly/load-test bay | Releases fit and rated system | Engineer-approved method |
Raw materials, utilities and factory requirements
- Certified cold-rolled or galvanized steel coil/sheet
- Beam connectors, base plates, braces, bolts and anchors
- Pretreatment chemicals and powder coating
- Pallets, straps, labels and component separators
- Three-phase power and hydraulic services
- Safe coil lifting and long material flow
- Punching noise control and machine guarding
- Ventilated pretreatment/powder-curing area
- Level assembly and proof-test zone
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Entry upright/shelf former and servo punch | US$28k-75k | One system/profile |
| Beam, brace and connector fabrication | US$15k-45k | Matched component scope |
| Powder coating, gauges and test bay | US$22k-65k | Safety-critical release |
| Freight, installation and engineering | US$15k-42k | Design and commissioning |
| Indicative installed low-entry total | US$80k-227k | Building, coil stock and forklifts excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
