Production line and factory setup overview
A micro metal-fabrication workshop converting purchased mild-steel bars, hollow sections and decorative elements into measured security grilles and window guards through site measurement, cut-list preparation, sawing, punching, cold bending and scroll forming, jig assembly, MIG welding, grinding, corrosion pretreatment, painting or powder coating, anchor preparation, fit inspection and installation.
Recommended lowest-entry line configuration Begin as a build-to-order workshop with one cold saw, section bender, compact scroll/twist machine, 40-60 t ironworker, two MIG welders, modular fixture tables, grinders and wet-paint booth. Standardize three infill patterns and two frame sections while every opening remains measured. Add powder coating only after throughput supports proper pretreatment and curing.
Production process and implementation sequence
- Site survey and approved drawing
- Steel receiving and cut-list nesting
- Sawing, punching and end preparation
- Cold bending, scroll or twist forming
- Fixture assembly and MIG welding
- Grinding and corrosion pretreatment
- Painting, curing and hardware fit
- Dimensional inspection, packing and installation
Products, capacity and market fit
- Homes and shops routinely need made-to-measure window and entrance protection.
- Afghan workshops can source standard steel sections and use local skilled fabrication labor.
- Build-to-order production limits finished inventory and expensive profile tooling.
- Safe egress, anchor design, weld quality and corrosion protection matter more than ornament.
- Fixed window security grille - Opening, frame, bar spacing, anchor type, weld, finish and emergency-egress decision - Homes, shops and offices
- Hinged or removable guard - Approved hinge, lock, release route, frame clearance and corrosion finish - Locations requiring cleaning or emergency access
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Cold saw and length stops | Cuts bars and sections accurately | Cut-list control |
| Ironworker | Punches, notches and shears sections | 40-60 t entry |

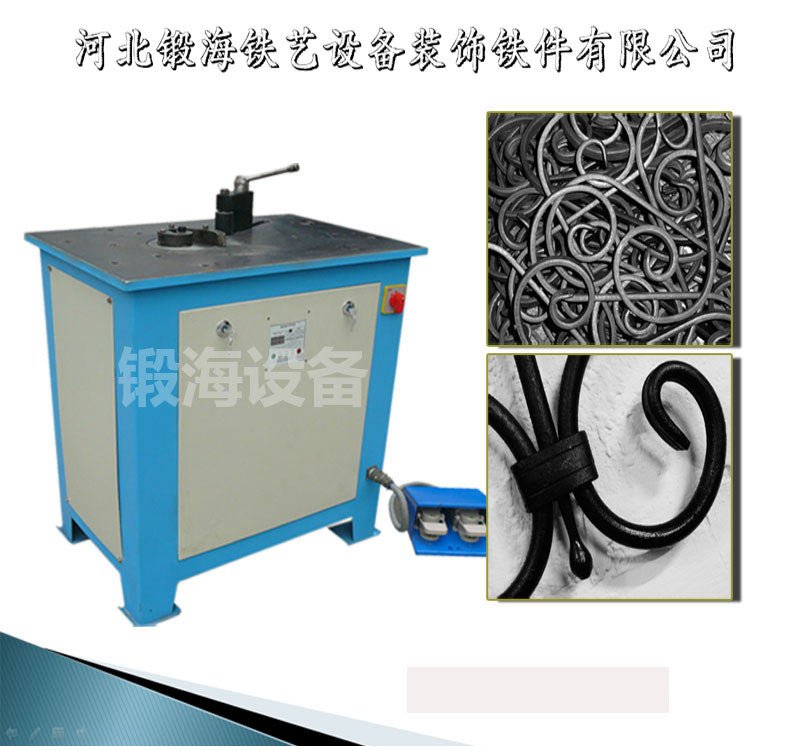

| Section bender and scroll/twist machine | Forms frames and decorative infill | Three launch patterns |
| Fixture tables and clamps | Controls square repeatable assemblies | Modular jigs |
| MIG welders and extraction | Joins frames and bars safely | Two-station entry |
| Grinding and wet-paint booth | Finishes and protects assemblies | Powder-coat optional later |
| Installation tools and pull-test kit | Installs and verifies anchors | Substrate-specific |
Raw materials, utilities and factory requirements
- Mild-steel square/round bar, angle and hollow section
- Hinges, locks, anchor plates, bolts and approved fasteners
- Primer, topcoat, thinners or later powder-coat materials
- Abrasives, welding wire/gas and protective packing
- Three-phase or confirmed workshop electrical supply
- Welding-fume and paint-vapour extraction
- Fire-safe gas-cylinder and paint storage
- Flat fabrication/finishing zones
- Installation vehicle and safe access equipment
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Saw, ironworker and forming tools | US$8k-20k | Flexible micro workshop |
| Welding, fixtures and grinding | US$4k-11k | Two fabrication stations |
| Wet-paint finishing and safety | US$3k-9k | Powder coating excluded |
| Installation tools, freight and spares | US$3k-8k | Local installation route |
| Indicative installed low-entry total | US$18k-48k | Building, vehicle and steel stock excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
