Production line and factory setup overview
A small stone-finishing line converting sound rough-cut marble slabs into calibrated honed or polished slabs through slab receiving and crack inspection, loading, surface calibration or grinding, progressive wet honing and polishing, washing, drying, gloss and flatness inspection, optional resin filling or mesh reinforcement under a separate controlled route, edge protection, racking and dispatch.
Recommended lowest-entry line configuration For the lowest entry, begin with one supported bridge-type or conveyor polisher using a controlled sequence of abrasive heads, slab loading tables, water recirculation with settling/filter press, wash/dry station, gloss meter, straightedge and safe slab racks. Select an 8-12 head automatic line only when repeat volume justifies it; do not buy a 16-24 head line for uncertain demand.
Production process and implementation sequence
- Rough-slab receiving and crack mapping
- Safe loading and surface cleaning
- Calibration or initial grinding
- Progressive wet honing
- Fine polishing to contracted gloss
- Washing, squeegee and drying
- Gloss, flatness and defect inspection
- Edge protection, racking and dispatch
Products, capacity and market fit
- Local polishing converts rough Afghan marble slabs into higher-value surfaces for buildings and export.
- A compact manual or bridge-assisted cell can serve project orders before continuous-line demand is proven.
- Water recycling, correct abrasive sequence and slab handling protect both cost and finish quality.
- Stone-specific trials are essential because hardness, cracks and mineral variation affect gloss and breakage.
- Polished marble slab - Buyer-defined variety, thickness tolerance, flatness, gloss, scratch, edge and crack limits - Countertop, tile, wall-cladding and construction fabricators
- Honed marble slab - Controlled matte finish and lower gloss range on an approved sample - Flooring and architectural projects requiring non-mirror finish
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Slab loading tables, clamps and racks | Moves heavy slabs without breakage | Rated and non-marking |

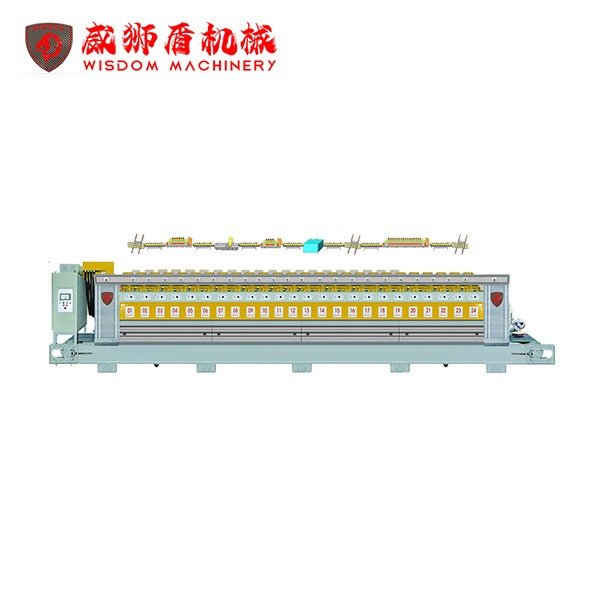

| Bridge or compact conveyor polisher | Grinds and polishes the slab face | One-shift entry configuration |
| Abrasive head and tool set | Provides progressive grit sequence | Marble-specific consumables |
| Wash and dry station | Removes slurry before final inspection | Clean final rinse |
| Water settling and filter press | Recovers process water and separates fines | Closed-loop target |
| Gloss and dimensional laboratory | Measures finish, thickness and flatness | Master sample and buyer tolerance |
| Optional resin/mesh station | Stabilizes approved cracked slabs | Separate ventilated Phase 2 route |
| Edge protection and packing tools | Prevents dispatch damage | A-frame transport system |
Raw materials, utilities and factory requirements
- Sound rough-cut marble slabs with mapped cracks and thickness
- Marble-specific abrasive bricks or diamond/resin tools by grit
- Clean makeup water and approved cleaning chemistry
- Optional resin, catalyst and mesh only under a validated repair specification
- A-frame separators, corner protectors, wrap, labels and critical spares
- Three-phase power and protected wet-area electrical installation
- Rated slab lifting and A-frame handling system
- Closed-loop polishing-water settling and filter press
- Good drainage, non-slip floors and splash containment
- Ventilation and chemical controls if resin repair is installed
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Compact bridge/conveyor polishing cell | US$12k-32k | Manual loading, controlled wet polishing |
| Loading, racks, wash/dry and inspection tools | US$6k-16k | Safe handling and release |
| Water settling/filter system and wet electricals | US$7k-20k | Closed-loop process scope |
| Freight, installation, abrasives and spares | US$7k-22k | Commissioning with Afghan marble |
| Indicative installed low-entry total | US$32k-90k | Automatic 8-24 head line, building and slabs excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
