Production line and factory setup overview
Produces durable plastic paver moulds by engineering a steel tool, then injection moulding PP/ABS mould trays, cooling, trimming, dimensional checks and repeated concrete-casting tests.
Recommended lowest-entry line configuration This is a tooling-plus-injection project, not a simple casting workshop. Validate steel tool design, resin grade, shrinkage, wall/rib geometry, cooling, concrete vibration and tray cycle life before machinery selection.
Production process and implementation sequence
- Master/pattern approval
- Mould-box or tooling preparation
- Material weighing/processing
- Casting, layup or injection
- Controlled cure/cooling
- Demoulding and trimming
- Trial product/repeat-use inspection
- Packing and release
Products, capacity and market fit
- Approve a physical sample and applicable standard.
- Launch with a defined product range and documented tool settings.
- Keep material and quality records for each batch.
- Injection-moulded plastic paver moulds - PP/ABS grade, tray geometry, wall/rib thickness, steel-tool design, shrinkage, cooling, paver pattern, stiffness, vibration resistance and cycle life - Concrete-paver plants, landscaping product makers, block yards and construction-material suppliers
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Tool design/CNC or outsourced tool approval | Creates steel injection tool | Shrinkage/cooling design |

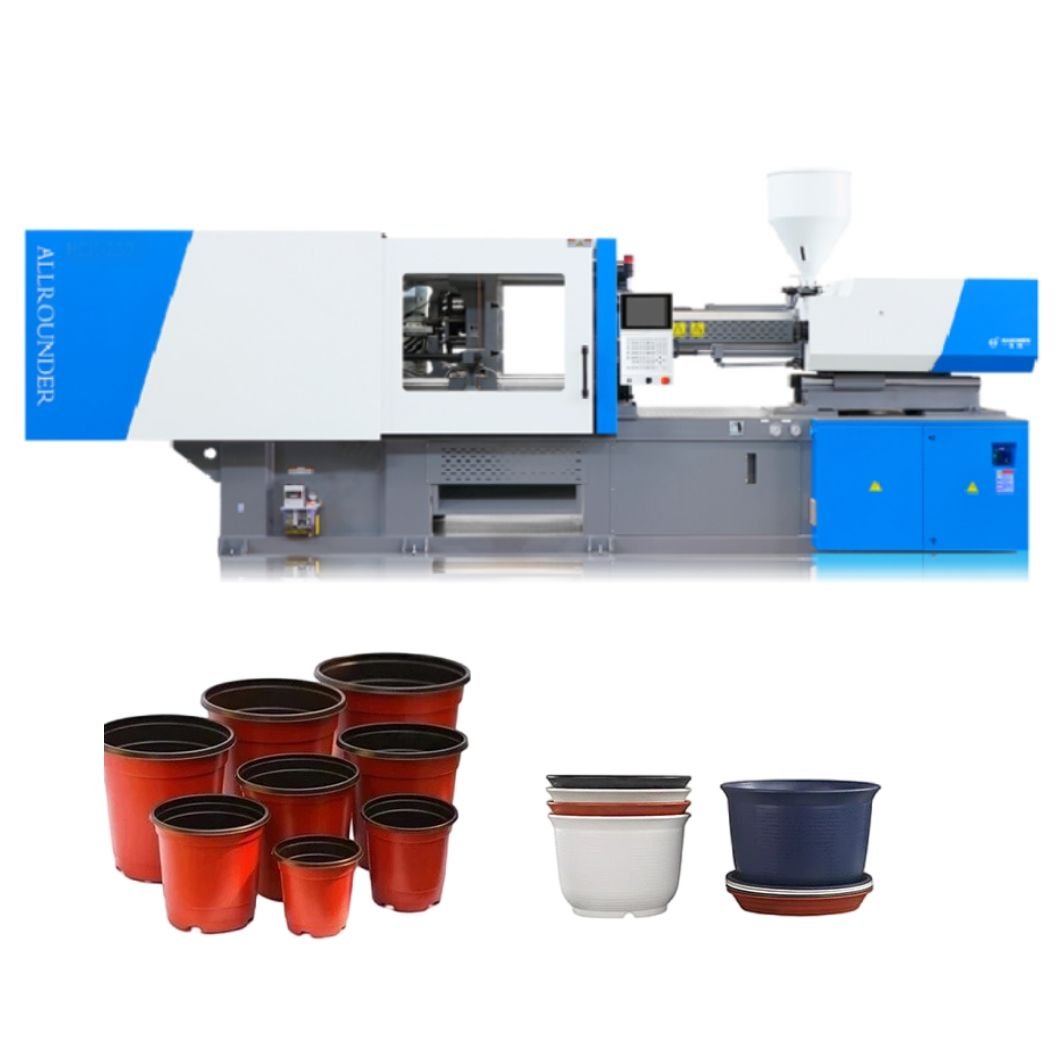

| Injection moulding machine | Moulds plastic trays | Clamp/shot capacity |
| Temperature control/cooling | Stabilises mould geometry | Cooling cycle |
| Trim/inspection station | Releases trays | Wall/rib/dimension |
| Concrete trial rig | Checks mould life | Vibration/release cycles |
Raw materials, utilities and factory requirements
- PP/ABS resin, colour masterbatch, steel injection tooling, release/cleaning materials, packaging and tool-maintenance consumables
- Stable electricity, covered raw-material storage and protected finished-goods handling
- Guarded equipment, documented maintenance, essential spares and product-specific safety controls
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Injection machine and temperature control | US$35k-130k | Tray-size dependent |
| Steel tool and finishing/inspection | US$25k-120k | Tooling drives quality |
| Trials, freight and spares | US$10k-45k | Cycle-life validation |
| Indicative project total | US$70k-295k | Workshop, resin and extra tools excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
