Production line and factory setup overview
A small project-fabrication line converting purchased galvanized round or oval tubing into complete hoop-house and crop-tunnel frame kits through farm/site survey, structural design, tube receiving, cut-to-length, CNC arc rolling, end swaging or connector drilling, brace and base fabrication, optional film-lock channel forming, trial-bay assembly, coating repair, kit counting and installation documentation.
Recommended lowest-entry line configuration Launch one 6-8 m wide naturally ventilated tunnel kit designed for the target province wind and snow. Buy galvanized tube, then install a servo/CNC nine-wheel arc bender for 10-60 mm tube, cut saw, end swager/drill, brace fixtures and a full-bay assembly pad. Add a dedicated film-lock-channel former only after the channel profile and plastic-film system are approved.
Production process and implementation sequence
- Farm survey and structural design
- Galvanized tube receiving and release
- Cut-to-length and batch coding
- CNC hoop arc rolling
- End swaging, drilling and connector work
- Brace, base and door-frame fabrication
- Complete bay trial assembly
- Kit packing, foundation and installation guide
Products, capacity and market fit
- Protected cultivation can extend Afghan vegetable and nursery seasons.
- Local kit fabrication reduces freight and allows province-specific span and bay length.
- Purchased galvanized tube avoids a tube mill and galvanizing plant.
- Wind, snow, anchoring, ventilation and film attachment determine survival.
- Naturally ventilated hoop-house kit - Span, bay, tube grade/coating, hoops, purlins, braces, anchors, vents and film lock - Vegetable and nursery growers
- Low crop-tunnel kit - Crop width, hoop spacing, tube, anchors and cover attachment - Small farms and season extension
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Tube saw and length stops | Cuts coded frame members | Kit cut list |

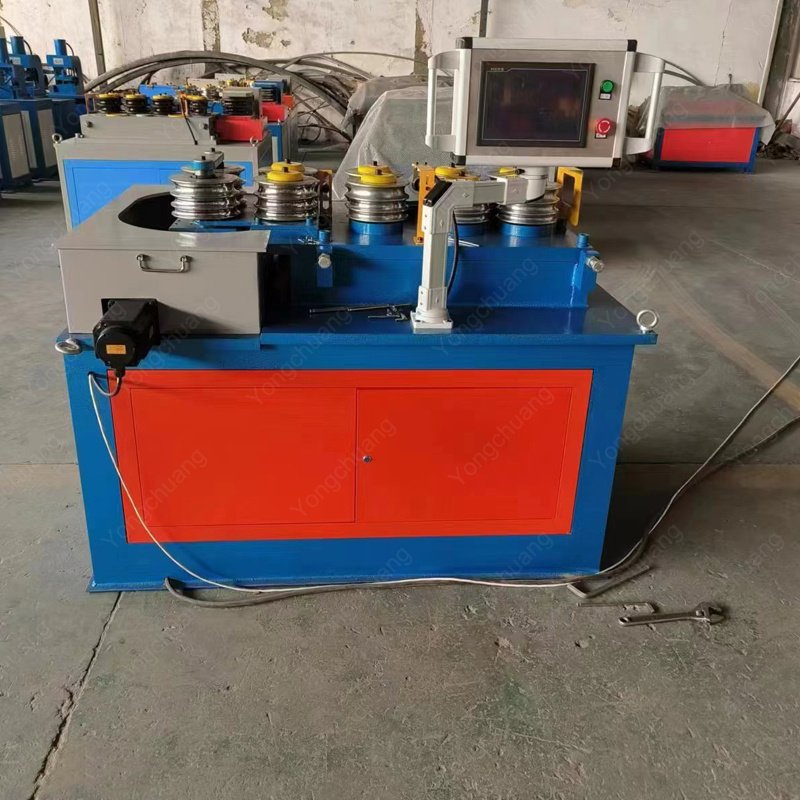

| CNC nine-wheel arc bender | Forms repeatable hoops | 10-60 mm supplier range |
| End swager, drill and punches | Creates nesting and bolted joints | One connection family |
| Brace/base welding fixtures | Produces matched accessories | Corrosion repair required |
| Optional film-lock roll former | Makes cover-retaining channel | Approved profile only |
| Full-bay assembly and anchor test area | Validates fit and site interface | Engineer-approved sample |
Raw materials, utilities and factory requirements
- Galvanized tube by grade, wall, diameter and coating
- Bolts, clamps, bases, anchors, braces and repair zinc
- UV-stabilized film and lock wire sourced to approved system
- Labels, bundles and installation hardware
- Stable three-phase power with protected distribution
- Guarded hot-work or forming zones and emergency stops
- Covered raw-material and finished-goods storage
- Fume/dust extraction, fire protection and disciplined housekeeping
- Level outdoor trial-assembly and representative anchor pull-test area
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| CNC arc bender and tube saw | US$9k-24k | One span family |
| Swage, drill, fixtures and welding | US$6k-18k | Complete connectors |
| Trial bay, gauges and installation tools | US$4k-12k | Structural fit |
| Freight, commissioning and spares | US$4k-12k | Compact workshop |
| Indicative installed low-entry total | US$23k-66k | Film, building and tube stock excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
