Production line and factory setup overview
A small/medium fabrication line producing one engineered family of circular corrugated bolted galvanised-steel water tanks from certified coated coil through decoiling, levelling, corrugating, programmed punching, hydraulic cutting, panel curving, edge protection, roof and base-component fabrication, trial-ring assembly, liner or approved seal-system installation, hydrostatic testing, kit counting and traceable packing.
Recommended lowest-entry line configuration Launch one 4-12 m diameter corrugated bolted tank family using 1.0-3.0 mm certified galvanized or Zn-Al-Mg coil. Contract the exact profile, hole pattern, curving range and structural design; include decoiler, leveler, 18-24 stand corrugating former, servo punching, hydraulic cut, curving unit, roof/base fixtures and a full trial-ring and hydrostatic-test system. Potable-water use requires a separately certified liner or coating and hygienic fittings.
Production process and implementation sequence
- Tank duty, water quality and structural design
- Coil certificate and coating release
- Decoiling, levelling and corrugating
- Programmed punching and hydraulic cut
- Panel curving and edge protection
- Roof, base, stiffener and fitting fabrication
- Trial-ring assembly and liner/seal installation
- Hydrostatic test, kit count and dispatch
Products, capacity and market fit
- Water storage supports farms, communities, construction and industrial sites.
- Bolted kits can be transported to provinces more efficiently than complete welded tanks.
- One engineered diameter/height family controls panels, bolts, roofs and foundations.
- Structural loads, corrosion, liner compatibility and hydrostatic testing determine safe service.
- Corrugated bolted water-tank kit - Diameter, height, volume, steel grade/BMT, coating, rings, roof, stiffeners, bolts, seal/liner and design loads - Farms, communities, construction and industry
- Potable-water tank package - Same structural kit plus certified hygienic liner/coating, covered roof, screened vent, drain and cleanable fittings - Drinking-water projects only after water-contact approval
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Coil decoiler and leveler | Feeds certified coated strip without damage | 1.0-3.0 mm basis |
| Punching and corrugated roll former | Forms stiffened panels and connection holes | 18-24 stands |

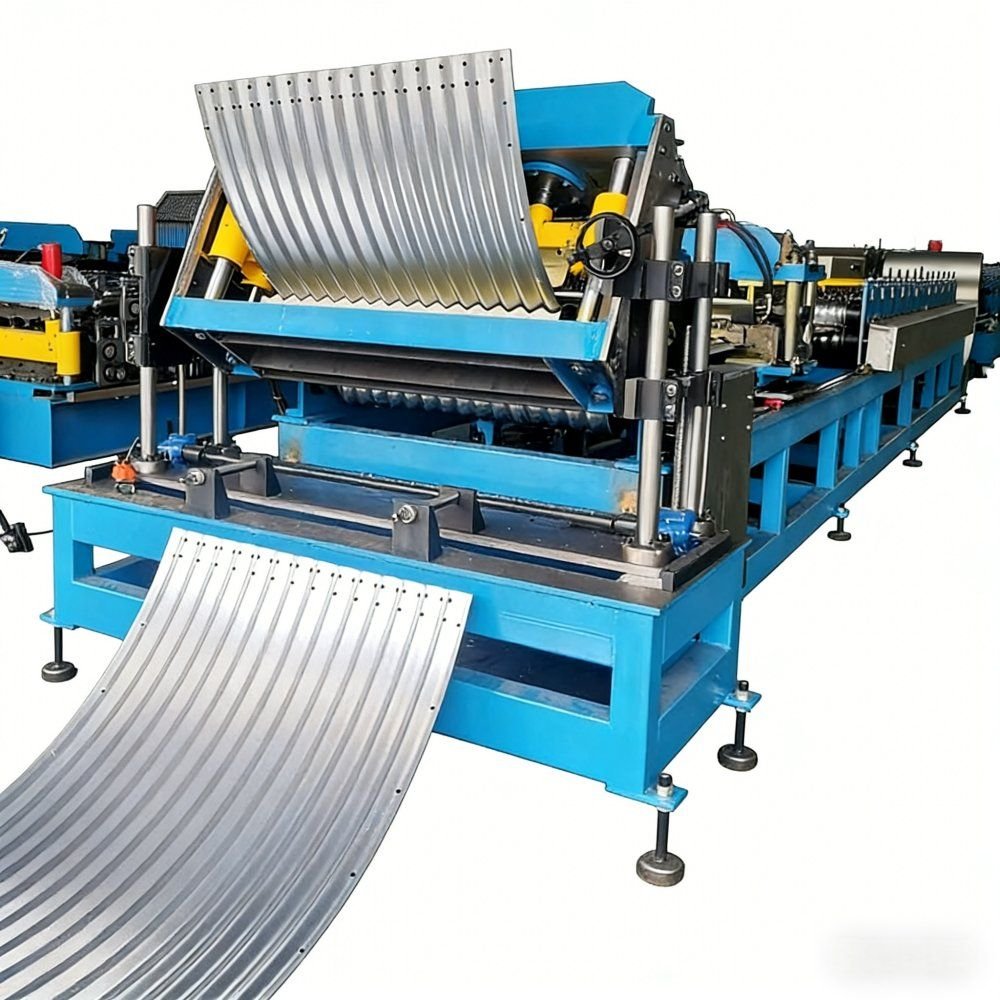

| Hydraulic cut and panel curver | Cuts and curves contracted tank rings | 4-12 m family |
| Roof/base and fitting tools | Makes matched structural kit components | Engineer drawings |
| Trial-ring assembly fixtures | Verifies hole, curvature and joint fit | Full representative ring |
| Hydrostatic and coating/liner test kit | Releases watertight hygienic assemblies | Named acceptance plan |
Raw materials, utilities and factory requirements
- Certified galvanized or Zn-Al-Mg coil by grade, BMT and coating mass
- Engineer-approved structural bolts, washers, stiffeners, roof and base parts
- Approved sealant or certified potable-water liner and compatible fittings
- Zinc-rich repair system, labels and kit packing
- Stable three-phase electricity with protected distribution
- Covered sheet store and safe lifting/handling routes
- Guarded presses, interlocked tooling and emergency stops
- Welding/fume extraction, fire protection and disciplined housekeeping
- Level assembly slab, controlled fill/drain water and safe hydrostatic test area
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Decoiler, punch and corrugated former | US$32k-78k | One profile family |
| Cut, curving and kit-fabrication tools | US$12k-34k | Complete panel route |
| Assembly, hydrotest and inspection scope | US$7k-20k | Mandatory release |
| Freight, installation, tooling and spares | US$10k-28k | Supplier trial included |
| Indicative installed low-entry total | US$61k-160k | Building, coil stock, foundation and liner stock excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
