Production line and factory setup overview
A micro/small workshop converting approved polished stone-tile offcuts and strips into saleable mosaic sheets and decorative modules through colour and thickness sorting, strip sizing, multi-blade small-piece cutting or splitting, optional tumbling, washing and drying, pattern assembly on jigs, mesh backing with controlled adhesive, curing, dimensional inspection, sheet packing and carton labeling.
Recommended lowest-entry line configuration Start with three repeat patterns using 10-50 mm pieces from one or two compatible stone families. Install a strip cutter, adjustable multi-blade mosaic cutter or hydraulic splitter, small tumbler only if the finish needs it, wash/dry table, assembly jigs, mesh-gluing and curing racks, inspection gauges and dust/water controls. Do not launch dozens of patterns before contractor orders.
Production process and implementation sequence
- Offcut receiving and colour/thickness sorting
- Strip sizing and surface inspection
- Multi-blade piece cutting or splitting
- Optional tumbling and edge softening
- Washing, drying and piece grading
- Pattern assembly in dimensioned jigs
- Mesh backing, adhesive application and curing
- Sheet inspection, protection and carton packing
Products, capacity and market fit
- Stone offcuts can become higher-value decorative products while reducing disposal volume.
- Manual pattern assembly uses local labour and limits entry capital.
- Three repeat designs are easier to sample, quote and stock than a broad uncontrolled catalogue.
- Adhesive compatibility, sheet alignment and colour consistency determine installer acceptance.
- Mesh-backed stone mosaic sheet - Approved pattern, piece size, joint width, sheet dimensions, colour range, adhesion and flatness - Interior, bathroom, hospitality and decorative-wall installers
- Loose decorative stone pieces - Graded shape, colour, thickness and quantity per pack - Craft, landscaping and custom-design buyers
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Sorting and strip-sizing benches | Grades offcuts and prepares repeat strips | Manual colour-led entry |

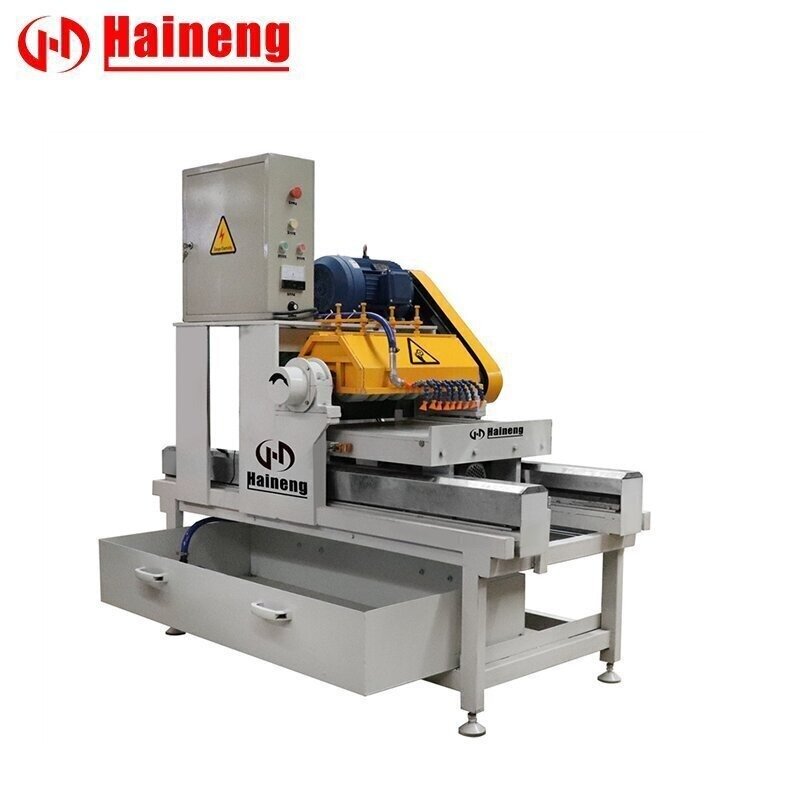

| Adjustable multi-blade mosaic cutter | Cuts small repeat pieces accurately | 10-50 mm piece range |
| Optional hydraulic stone splitter | Creates natural split-face pieces | Separate product route |
| Small tumbler and wash/dry station | Softens edges and cleans pieces where specified | Finish-dependent |
| Pattern jigs and illuminated tables | Controls joint and sheet dimensions | Three launch patterns |
| Mesh cutting and adhesive applicator | Forms installer-ready backed sheets | Stone-compatible adhesive |
| Curing racks and ventilation | Develops bond without contamination | Validated time/temperature |
| Inspection gauges and packing tools | Grades and protects completed sheets | Carton traceability |
Raw materials, utilities and factory requirements
- Clean polished stone offcuts or strips by family, colour and thickness
- Alkali-resistant backing mesh and stone-compatible adhesive
- Approved cleaning water and optional tumbling media
- Cartons, separators, corner pads, labels, diamond blades and wear spares
- Three-phase or single-phase protected wet cutting power as selected
- Local dust extraction and wet-cut water containment
- Small settling/filter arrangement for stone fines
- Ventilated adhesive application and curing area
- Dry colour-controlled piece and finished-sheet storage
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Strip and multi-blade mosaic cutting | US$12k-28k | One piece-size family |
| Jigs, mesh bonding, curing and finishing tools | US$5k-14k | Local manual assembly |
| Water/dust control, inspection and packing | US$4k-11k | Clean controlled workshop |
| Freight, installation, blades and spares | US$5k-15k | Starter consumables |
| Indicative installed low-entry total | US$26k-68k | Building, offcuts and working capital excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
