Production line and factory setup overview
Manufactures aluminium or steel suspended-ceiling panels by decoiling, levelling, perforating, punching/forming edges, cleaning, powder coating, curing, inspection and protective packing.
Recommended lowest-entry line configuration Screen a medium coil-processing line only after panel sizes, hole pattern, coil grade/thickness, coating standard, fire requirements and ceiling-grid compatibility are defined.
Production process and implementation sequence
- Coil receipt and levelling
- Perforation/punching
- Panel blanking and edge forming
- Cleaning/pre-treatment
- Powder coating and curing
- Inspection, film protection and packing
Products, capacity and market fit
- Approve a physical sample and installation system.
- Start with a focused, saleable range.
- Document material and quality checks for every batch.
- Decorative perforated metal ceilings - Metal grade/thickness, perforation pattern, panel flatness, edge geometry, coating adhesion, colour and grid fit - Commercial buildings, airports, retail, offices, hospitals and ceiling contractors
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Decoiler/leveller | Feeds flat coil | Specified metal gauge |
| CNC perforation/punch press | Creates hole pattern | Approved pattern/open area |
| Panel former | Forms grid-compatible edges | Flatness/edge test |

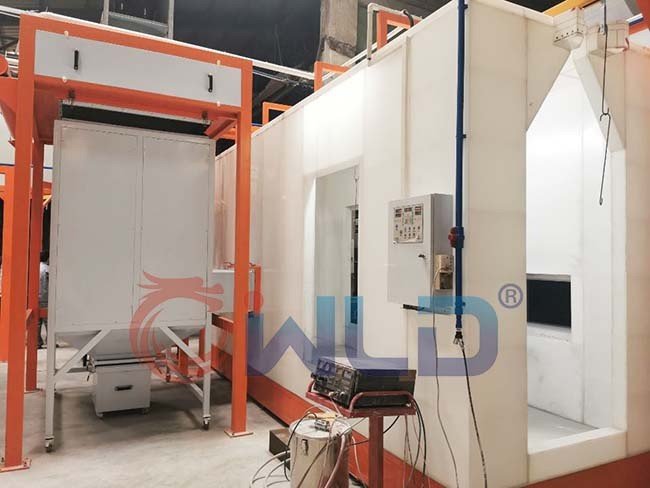

| Powder-coat oven | Applies durable finish | Adhesion/colour control |
Raw materials, utilities and factory requirements
- Aluminium or galvanised-steel coil, pre-treatment chemicals, powder coat, protective film, hangers/grid interfaces and packaging
- Stable power, extraction/ventilation and dry covered storage
- Guarded equipment, documented maintenance and essential spares
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Coil feed, punching and forming | US$180k–650k | Medium coil-processing line |
| Coating/curing and packing | US$100k–350k | Finish quality scope |
| Indicative total | US$350k–1m | Coil inventory/building excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
