Production line and factory setup overview
A micro/small wire-weaving line converting purchased galvanized or PVC-coated steel wire into rolled diamond-mesh chain-link fence through wire-coil receiving and coating inspection, payoff, controlled feeding through matched forming dies, single- or double-wire spiral forming, interweaving, automatic length measurement, knuckled or twisted edge finishing, roll take-up and compaction, dimensional and coating inspection, strapping and traceable dispatch. Wire galvanizing and PVC extrusion are separate upstream processes.
Recommended lowest-entry line configuration Launch one standard security-fence roll using purchased galvanized wire—for example 2.5-3.0 mm wire, 50-60 mm mesh, 2 m width and 15-20 m roll length—subject to buyer confirmation. Screen one supported double-wire PLC machine with two payoffs, matched die set, automatic cut and knuckle/twist edge module, roll take-up/compactor, wire and mesh gauges, calibrated roll-length counter and strapping. Add wire drawing, galvanizing or PVC coating only as a later separately controlled project.
Production process and implementation sequence
- Coated-wire receiving, diameter and coating release
- Coil payoff and controlled dual-wire feeding
- Spiral forming through the selected diamond die
- Automatic interweaving and mesh advancement
- Width and programmed roll-length control
- Knuckled or twisted edge formation and cut-off
- Roll take-up, compaction and strapping
- Mesh, coating, mass and installation-sample release
Products, capacity and market fit
- Homes, farms, compounds, schools, sports grounds and industrial sites use chain-link fencing in standard rolls.
- Buying coated wire avoids the environmental and capital burden of a galvanizing or PVC-extrusion plant.
- One mesh aperture, wire diameter and roll width simplify dies, setup and inventory.
- Coating integrity, mesh geometry, edge finish and actual roll dimensions drive buyer trust.
- Galvanized chain-link fence roll - One wire diameter, mesh aperture, width, length, edge type, coating and roll-mass specification - Construction merchants, farms, compounds and contractors
- PVC-coated chain-link roll - Separate core wire, finished diameter, colour, coating adhesion and weathering approval - Sports, residential and landscape projects after buyer approval
Core production machinery and line specifications
| Machine / stage | Function / value | Production note |
|---|---|---|
| Twin wire payoffs and tension guides | Feeds coated wire without scratching or tangles | Starter wire range |

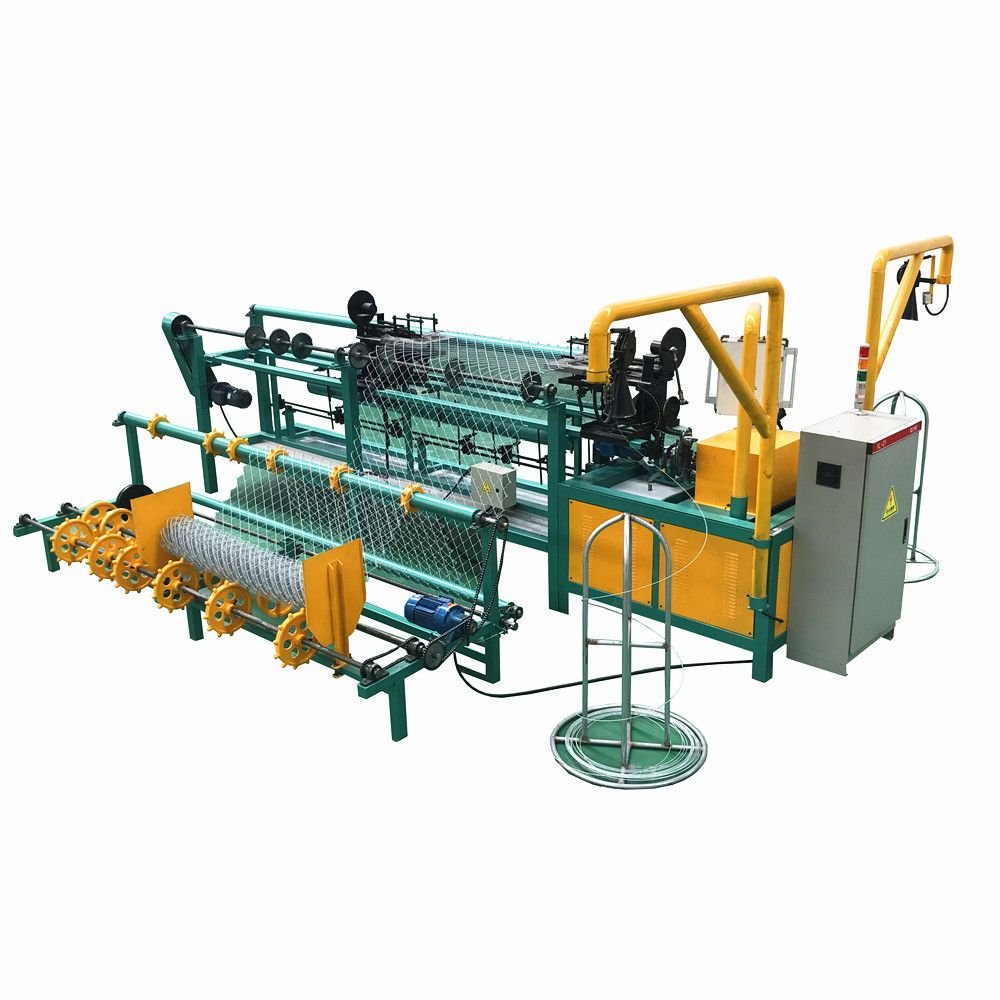

| Double-wire PLC chain-link machine | Forms and interweaves diamond spirals | 2 m launch width |
| Matched forming dies and guides | Defines mesh aperture and wire path | 50-60 mm launch mesh |
| Automatic cut and edge module | Finishes knuckled or twisted roll edges | One edge style at launch |
| Roll take-up and compactor | Forms tight transportable rolls | 15-20 m roll basis |
| Wire, mesh and coating gauges | Releases dimensions and surface | Buyer methods |
| Length counter, scale and strapping tools | Controls roll quantity and dispatch | Calibrated traceability |
Raw materials, utilities and factory requirements
- Purchased galvanized or PVC-coated low-carbon steel wire by full specification
- Straps, wrap, core/supports and durable roll labels
- Forming dies, cutters, guides and wear parts by wire/mesh size
- Lubricant only where approved without damaging coating
- Stable three-phase power and protected controls
- Dry wire-coil store with safe coil lifting and payoff space
- Long guarded machine footprint with safe roll discharge
- Ventilation and housekeeping for any coating dust or wire debris
- Finished-roll storage protected from deformation and corrosion
Indicative low-entry investment and implementation plan
These planning ranges prioritize economical machinery, local labor and local civil works. Final pricing follows confirmed capacity, product specification, delivery terms and site conditions.
| Scope | Indicative range | Entry-plan note |
|---|---|---|
| Double-wire machine, payoffs and die set | US$10k-25k | One mesh and width family |
| Edge module, roll take-up and compactor | US$4k-11k | Knuckle or twist launch style |
| Inspection, handling and strapping | US$2k-6k | Calibrated roll release |
| Freight, installation and starter spares | US$4k-12k | Compact workshop |
| Indicative installed low-entry total | US$20k-54k | Wire drawing/coating, building and wire stock excluded |
Detailed proposal and next step
The proposal contains the complete line flow, machinery scope, raw-material and utility requirements, implementation stages and indicative entry planning. Final configuration follows confirmed products, capacity, site and budget.
